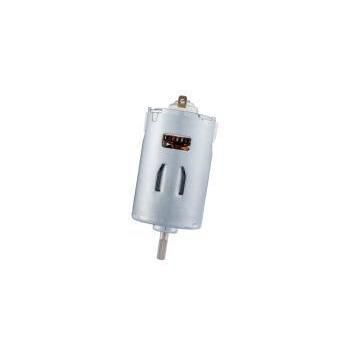

DC motor RS-4266CT series

brushed110 V120V

RS-4266CT Product Overview
RS-4266CT is a 42 mm brushed DC motor with a 66 mm body length designed for transformer-free kitchen appliances and compact electromechanical devices. It accepts 100V–230V DC input (via rectifier bridge from AC mains), delivers up to 81.1 W, and reaches up to 17,000 rpm depending on the variant.

Key Facts for Engineering Buyers

• Product category: Brushed DC Motors
• Motor family: Brushed DC Motor
• Brand / manufacturer: KWC Motor, Dongguan KWC Machinery Co., Ltd.
• Typical applications: juicers, high-speed blenders, coffee grinders, handheld mixers and compact kitchen appliances

Specification Signals

• Diameter: 42 mm (outer diameter 42.2 mm)
• Body length: 66 mm
• Voltage range: 100V – 230V (variant dependent)
• Speed: up to 17,000 rpm
• Output power: up to 81.1 W
• Shaft diameter: 5.0 mm (standard)

Core Applications & Solutions

• Juicers and high-speed blenders: up to 81 W output and reinforced torque for crushing fruit, vegetables and ice with stable speed under load.
• Coffee grinders and handheld blenders: high speed (up to 17,000 rpm) for fast grinding; compact 42 mm diameter fits handheld or compact appliance designs.

Customization and Sourcing Notes

• Supports OEM/ODM customization: voltage, speed, torque, shaft design, cable/connector, gearbox integration, control board and noise/EMC targets.
• Winding parameters can be adapted to local mains standards (110V / 120V / 220V / 230V).
• Mechanical dims: outer diameter 42.2 mm, motor length 66.0 mm, shaft diameter 5.0 mm.

Quality and Factory Features

• Dedicated high-voltage production lines with specialized insulation processes for HV motors.
• 100% high-voltage insulation (Hi-Pot) testing.
• RoHS / REACH compliant.

RS-4266CT Technical Specifications (tabular)
Model | Operating Voltage Range | Nominal Voltage | No-Load Speed | Speed at Max Efficiency | Output Power | Stall Torque
RS-4266CT-10220 | 100V – 120V | 110V | 5,100 rpm | 4,059 rpm | 9.1 W | 1,074 g·cm
RS-4266CT-1790 | 100V – 120V | 120V | 14,000 rpm | 11,677 rpm | 55.7 W | 2,800 g·cm
RS-4266CT-12180 | 100V – 230V | 230V | 13,600 rpm | 10,865 rpm | 53.0 W | 2,365 g·cm
RS-4266CT-14140 | 100V – 230V | 230V | 17,000 rpm | 13,864 rpm | 81.1 W | 3,091 g·cm

Characteristics / Technical Specifications

• Model family: RS-4266CT
• Diameter: 42 mm (outer diameter 42.2 mm)
• Body length: 66 mm
• Nominal operating voltage range: 100V–230V (variants: 110V / 120V / 230V)
• No-load / max speeds: up to 17,000 rpm (variant dependent)
• Output power: up to 81.1 W
• Stall torque: up to 3,091 g·cm
• Shaft diameter: 5.0 mm (standard)
• Typical applications: juicers, blenders, coffee grinders, food processors, handheld appliances
