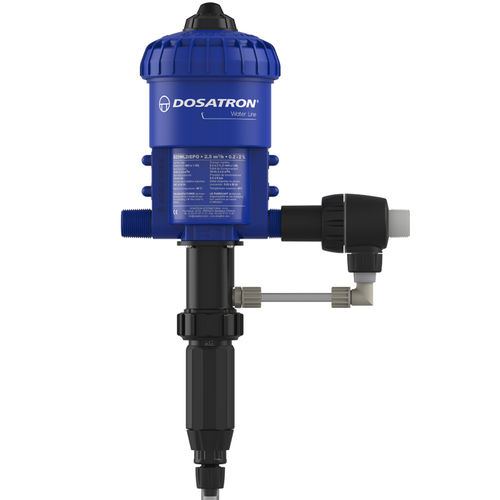

Water dosing dispenser D25WL2 IE PO series

pistonin-lineproportional

Specific features The D25WL2 IE PO is an efficient and attractive solution for in-line polymer dosing, thanks to standard equipment adapted to viscous products, its external injection and its dynamic mixer. • Proportional dosing and without electricity • Proportionality dependent on water flow • Significant homogeneity Specifications Injection range 0,2 - 2 % Water flow range 10 l/h - 2,5 m3/h Operating water pressure 0,3 - 6 bar Concentrated additive injection 0,02 l/h - 50 l/h Stroke volume ~ 0,45 l Connections NPT-BSP 3/4'' M Ø 20x27mm Available options Dynamic Mixer PVDF housing for highly concentrated acids and other aggressive concentrates Seals for highly concentrated acids (>15%) Sectors Wastewater treatment
