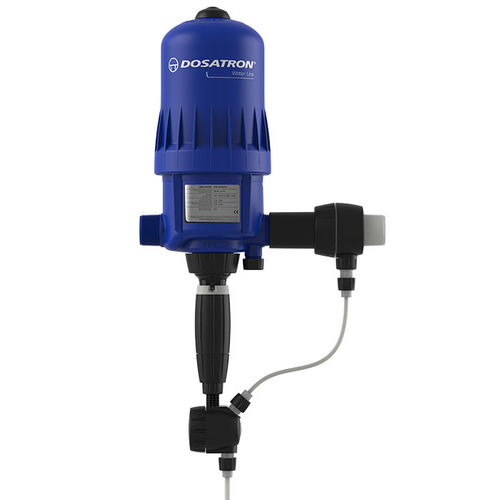

Water dosing dispenser D8WL-ACS series

pistonproportional

Certified dosing pump for drinking water Specific features The D8WL-ACS range of dispensers has obtained the mandatory French approval for all equipment in contact with water intended for human consumption. See more. It meets the dosing needs and dosing needs for flow rates ranging from 500 to 8,000 l/h. • Proportional dosing and without electricity • Proportionality dependent on water flow • Outlet injection • AF seals adapted to alkaline products Specifications Injection range 0,03 - 0,125 % [1:3000 - 1:800] Water flow range 500 l/h - 8 m3/h Operating water pressure 0,15 - 8 bar Concentrated additive injection 0,15 - 10 l/h Stroke volume ~ 1,7 l Connections NPT-BSP 40x49 - 1"1/2 M Available options (Integrated by-pass) system for manual activation of the additive suction (on) and stop (off) External Injection Support legs Sectors Drinking water treatment
