electric air heater unit / duct
Szerdi

Add to MyDirectIndustry favorites

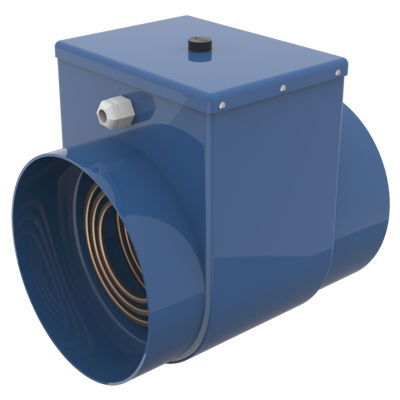

electric air heater unit / duct electric air heater unit / duct - Szerdi
{{requestButtons}}

Characteristics

  • Power source:

    electric

  • Mounting:

    duct

  • Heating power:

    Min.: 300 W (1,023.64 BTU/h)

    Max.: 12,000 W (40,945.68 BTU/h)

Description

Szerdi - duct heater

standard versions
012-0022SZERDI 1E 100/300
012-0023SZERDI 1E 120/300
012-0024SZERDI 1E 120/900
012-0102SZERDI 1E 125/300
012-0025SZERDI 1E 125/900
012-0039SZERDI 1E 150/1000
012-0026SZERDI 1E 150/1500
012-0040SZERDI 1E 160/1000
012-0027SZERDI 1E 160/1500
012-0028SZERDI 3E 150/3000
012-0029SZERDI 3E 150/4500
012-0030SZERDI 3E 160/3000
012-0031SZERDI 3E 160/4500
012-0103SZERDI 3E 200/3000
012-0032SZERDI 3E 200/6000
012-0101SZERDI 3E 250/4500
012-0118SZERDI 3E 250/6000
012-0033SZERDI 3E 250/9000
012-0034SZERDI 3E 315/7500
012-0035SZERDI 3E 315/12000

Szerdi heaters are designed to warm up the air flown into rooms. They are installed directly in round ventilation ducts, produced in the following sizes: Ø100/ Ø315 and of power from 0,3/ 12kW. They are used in residential buildings, public utility buildings, and industrial buildings in order to increase the ventilation air temperature to its required value. In standard, heaters possess two levels of thermal protection against overheating. The first one, that can be automatically reset disconnects the power supply of the heater in the temperature of 70 ºC. The second level, that is reset manually, disconnects the electrical circuit after 80ºC is exceeded.

Available colors:
blue

Material:
powder painted sheet steel
