Hot water air heater unit NW-01 / NW-02duct
Add to favorites
Compare this product
Characteristics
- Power source
- hot water
- Mounting
- duct
- Heating power
Min.: 1,300 W
(4,435.78 BTU/h)Max.: 3,600 W
(12,283.7 BTU/h)- Air flow
250 m³/h, 300 m³/h, 350 m³/h
(8,828.7 ft³/h, 10,594.4 ft³/h, 12,360.1 ft³/h)
Description

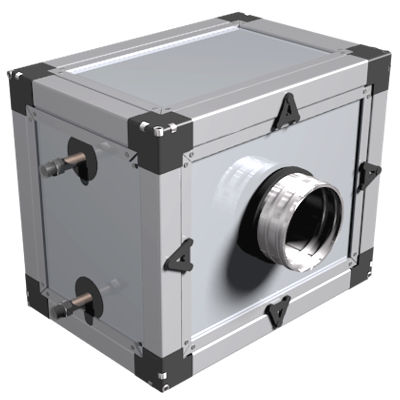

NW-01, NW-02 - water heater
Available versions
012-0111NW-1
NW-1 water duct heater is used to heat ventilating air flown into rooms. It is a complete device used to being installed in the mechanical ventilation system (with the enforced air flow). The NW-1 duct heater has a built-up lamel heat exchanger – liquid/air that has to be connected to CO network. The heat power of the device is dependent on temperature of water that supplies the exchanger, volume of water stream that flows through the exchanger and on the air volume flowing through the heater and in the time unit (for the below presented case the heat power of the device is 2,37KW).
Available colors:
silver
Material:
powder painted sheet steel
