Water washing machine BW series

steamsprayautomatic

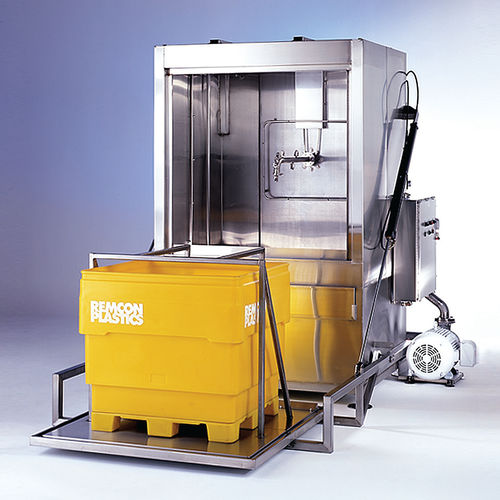

The Douglas Machine Model BW-1000-E is designed to wash and sanitize plastic or stainless steel bins and other large volume containers of similar size and weight. Convenient, push button operation of this Douglas machine activates the door which positions the container in the wash chamber and initiates the cleaning cycle which consists of a recirculating wash and fresh sanitizing rinse. For use with caustic detergents, consider the Douglas Machine Model BW-1000-C. FEATURES • Rugged Stainless Steel Construction • Thermostatically Controlled Temperatures • External Filter System with Removable Catch Basket • 25 H.P. TEFC, High Efficiency Motor • Adjustable Cycle Times • Recirculating Wash Tank • Door Operated by Hydraulic Cylinders • Rotating and Oscillating Spray Nozzles • Installed at Floor Level or in a Shallow Pit • Steam, Gas or Electric Booster Heating • One Year Warranty Program The BW-1000-E is designed to wash and sanitize plastic or stainless steel bins and other large volume containers of similar size and weight, one unit at a time. This powerfully efficient machine operates with a 25 H.P. pump that recirculates 325 GPM through the wash chamber at a minimum of 80 P.S.I. A toggle switch activates the door which positions the container slightly more than 90 degrees in the cabinet. The start button initiates the cleaning cycle which consists of a recirculating wash and a sanitizing rinse. Cycle times are fully adjustable to address a wide variety of soil conditions. Allowing for loading/unloading and using a 2 minute (or longer) wash, 22 second rinse and 1 minute for steam evacuation, 12 to 18 batches an hour is typical.
