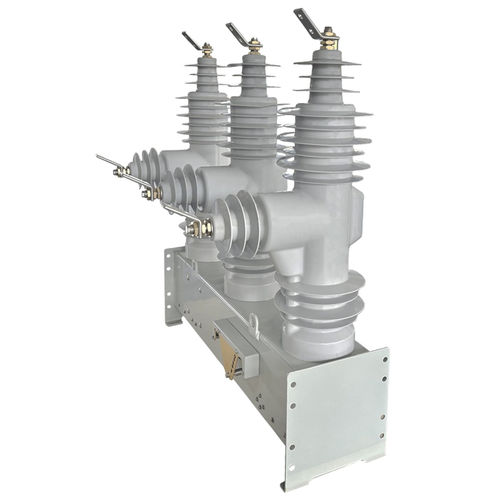

Vacuum circuit breaker ACRmagneticspring operatedshort-circuit
Add to favorites
Compare this product
Characteristics
- Type
- vacuum, magnetic, spring operated
- Electrical characteristics
- short-circuit, high-power, overcurrent, residual current, medium-voltage, AC, switching, 3-pole, three-phase, heavy-duty
- Operating mode
- automatic, motorized, electronically controlled, remotely operated, vacuum
- Applications
- distribution, motor protection, for network protection, railway, electrical power supply, for photovoltaic applications, for power generation installations, alarm trip
- Number of poles
- 3-pole
- Other characteristics
- compact, outdoor, high-performance, pole-mounted, programmable, spring operated
- Primary current
Min.: 630 A
Max.: 800 A
- VAC
Min.: 15 kV
Max.: 38 kV
- Rating
Min.: 12.5 A
Max.: 20 A
Description
• IEC 62271, ANSI/IEEE Std C37.60, NEMA
• ISO 9001, KEMA, CESI, CE, TUV, UL, ASTA
• Seismic design, ETGI-1.020, IEEE Std 693, NCh2369
• Structural design, ASTM A325, ANSI/AISC 360, AWS D1.1
• High altitude correction per IEC 62271 & IEEE C37, ~ 5000m
• HCEP encapsulated vacuum interrupters with excellent performance
• Painted 304 stainless steel tank for improved weatherability
• 3 Current transformers, 6 Voltage sensors
• RS-232/485, DNP3.0, Modbus, IEC 61850
