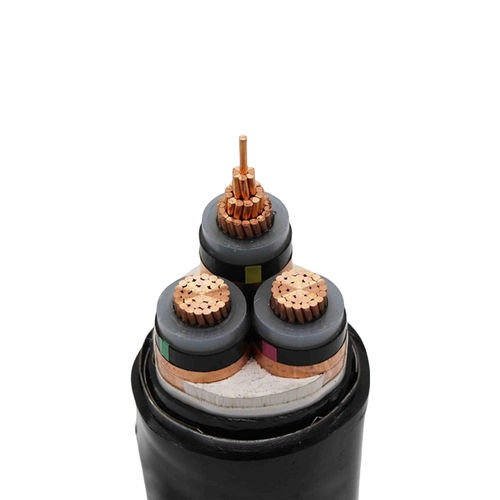

Power cable XLPEDINflame-retardantoil-resistant
Add to favorites
Compare this product
Characteristics
- Type
- power
- Format
- DIN
- Protection
- flame-retardant, oil-resistant, UV-resistant, armored, robust
- Configuration
- stranded
- Core material
- copper, aluminum
- Applications
- industrial, distribution, outdoor, underground
- Material of the insulation
- polyethylene
- Color of the insolation
- black
- Norms
- IEC
- Other characteristics
- ISO
- Nominal voltage
Max.: 36 kV
Min.: 10 kV
- Cross-section
Max.: 400 mm²
(0.62 in²)Min.: 50 mm²
(0.08 in²)
Description
• ISO 9001, IEC, CE, RoHS, CCC, KEMA, BS, DIN and ICEA upon request
• Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
• Conductor Screen: Semi-conductor; Screen : Copper tape
• Insulation: XLPE(cross-linked polyethylene) rated at 90℃
• Insulation Screen: Semi-conductor
• Sheath: PVC or FR-PVC type ST2 to IEC 60502, black
