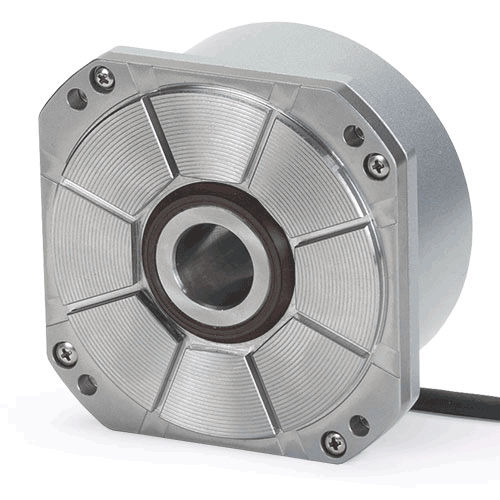

Incremental angle encoder RON 200

hollow-shaftcompactlarge-diameter

Incremental angle encoders with a compact design System accuracy of ±2.5” / ±5” Integrated stator coupling Hollow through shaft with ∅ 20 mm­ Signal periods per revolution: up to 180 000 with integrated interpolation Interfaces: TTL, 1 VPP ntegrated stator coupling The RON 200 series angle encoders feature an integrated stator coupling that easily connects the measured shaft directly to the shaft of the angle encoder. High accuracy Thanks to their high line count of 18,000 lines, the RON 200 series angle encoders can transmit either sinusoidal output signals or square-wave signals additionally interpolated within the encoder.
