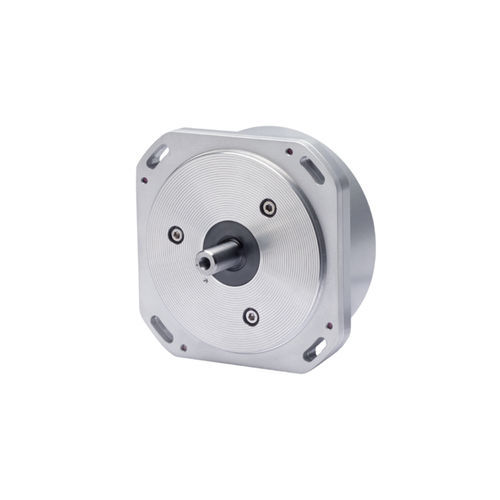

Incremental angle encoder ROD 200

solid-shafthigh-accuracycompact

Incremental angle encoders with a compact design System accuracy of ±5” For separate shaft coupling Solid shaft with ∅ 10 mm Signal periods per revolution: up to 180 000 with integrated interpolation Interfaces: TTL, 1 VPP Flexible coupling The solid shaft of the ROD 200 series angle encoders is connected to the measured shaft via a separate coupling. High accuracy Based on their high line count of 18,000 lines, these angle encoders can transmit either sinusoidal output signals or square-wave signals additionally interpolated within the encoder.
