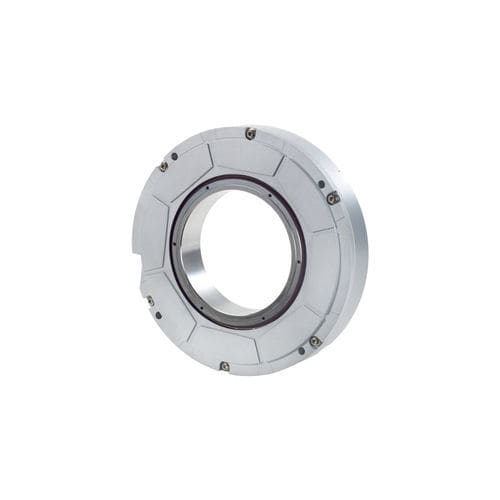

Absolute angle encoder RCN 8001

digitalserial12VDC

Absolute angle encoders for high productivity System accuracy of ±1” / ±2” Integrated stator coupling Position values per revolution: 29 bits High permissible shaft speeds Integrated temperature sensor Interfaces: EnDat 2.2, Fanuc Serial Interface αi, Mitsubishi high speed interface Available with functional safety High permissible shaft speeds With a purely serial interface, the RCN 8001 series angle encoders permit shaft speeds of up to 1500 rpm, enabling applications that are both highly dynamic and highly accurate. Easy temperature measurement Temperature evaluation for the direct drive motor windings can be performed in combination with the EIB 5200 sensor box from HEIDENHAIN. The temperature data and position data are transmitted to the control via the purely digital interface. Very high accuracy The RCN 8001 series angle encoders feature a high line count of 32,768 lines and excellent signal quality. Low motor current noise and smooth operating behavior are the benefits, especially in rotary axes powered by direct drive motors. Reliable scanning Thanks to optimized scanning, even liquid contamination and condensation have very little effect on the scanning signals or motor control. Disturbances in the machining process caused by encoder contamination are thereby largely avoided.
