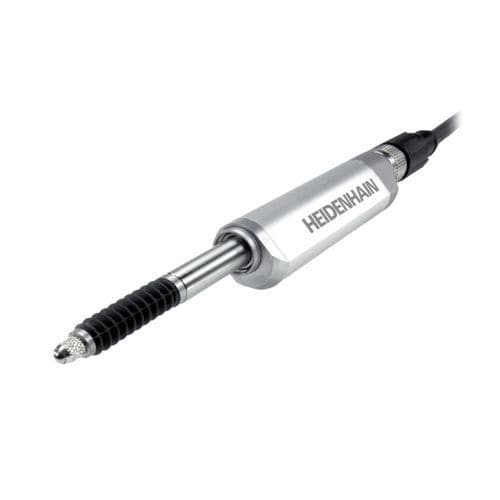

- Linear measurement touch probe
- DR. JOHANNES HEIDENHAIN GmbH
Characteristics
- Type
- linear measurement
- Technology
- optical, pneumatic, spring
- Display
- digital
- Applications
- for machine tools, for crankshafts
- Other characteristics
- compact, high-precision, waterproof, digital, absolute
- Resolution
Max.: 368 nm
Min.: 23 nm
- Measuring range
Max.: 30 mm (1.1811 in)
Min.: 0 mm (0 in)
Description
Absolute measuring method
The position value is available immediately after switched on
No counting error
No referencing needed—measured value is always available
High degree of protection
Protection up to IP67
Compact size
Station width of 15 mm
EnDat 2.2 interface
Additional information available on length gauge status (diagnostics, warnings, alarms)
