High-precision touch probes

The TP200 is a high-precision touch-trigger probe with stylus module changing developed for tightly toleranced workpieces, and where access to features requires long ...

... repeatable, automatic probe changing when utilising the Renishaw autochange system. The probes may be mounted in the quill of the CMM, using a PH10M PLUS motorised probe head, to provide ...

The SP600Q is a highly robust, in-quill analogue probe which is ideal for scanning and point measurement on CMMs. Compact in size, the SP600Q mounts directly onto the quill of the CMM. Along with minimal intrusion ...

... measuring applications that can benefit from the flexibility of an articulating probe holder combined with scanning capability. ZEISS VAST XXT is ideal for such tasks. Compared to touch-trigger sensors, ...

HH-MI - Manual indexing probe head with integrated touch trigger probe The HH-MI is a probe head with an accurate indexing probe stylus. The HH-MI ...

... indexing probe head with M8 threaded connection The HH-MI-M is a probe head with an accurate indexing probe stylus. The HH-MI-M can turn to 168 positions and swivel in 15° increments ...

Highly versatile touch trigger probe for outstanding measuring performance and functionality The HP-THDe touch trigger probe has been designed to take advantage of cutting-edge ...

Measuring range: 0 mm - 100 mm
Resolution: 0.1 µm

... Power supply 5 V DC, Mini USB • Operating position vertical • Weight 2.600 g Benefits • High-precision measuring results by resolution 0,01 µm • High repeatability, operator independent ...

Resolution: 0.01 µm

... to a size of 30 mm. Because of the stable and heavy base body of mineral casting external influences become eliminated to a high share. The compact design allows a flexible place of installation, no matter whether in ...

Measuring range: 5 mm
Resolution: 0.1 µm - 0.5 µm

DK805S Digital Gauges Incremental gauge with build-in magnetic linear encoder Excellent resistance against water and oil because of magnetic principle Long lifetime because of new ball spline bearing design Measuring range: 5mm Accuracy: ...

Measuring range: 12 mm
Resolution: 0.1 µm - 0.5 µm

DK812S Digital Gauges Incremental gauge with build-in magnetic linear encoder Excellent resistance against water and oil because of magnetic principle Long lifetime because of ball spline bearing design Measuring range: 12mm, Accuracy: ...

Measuring range: 30 mm

DK830S Digital Gauges Incremental gauge with build-in magnetic linear encoder Excellent resistance against water and oil because of magnetic principle Long lifetime because of ball spline bearing design Measuring range: 30mm Accuracy: ...

Measuring range: 0 µm - 1,000 µm

TIMES247 replaceable pickup is suitable for TIME3231 and TIME3234 roughness testers. The magnetic holder enables quick change of stylus. There are 10 types of stylus available. It greatly reduces the cost for you.

Measuring range: 0 mm - 400 mm
Resolution: 0.001 mm - 0.008 mm

TIME S201 (standard) Radius for needle point: 5μm Angle for needle: 90° Force for needle: 4mN Measuring range: 400μm TIME S212 for deep groove Radius for needle point: 5μm Angle for needle: 90° Force for needle: 4mN Measuring ...

Measuring range: 0 mm - 800 mm
Resolution: 0.001 mm - 0.016 mm

This is the standard stylus without skid. It can easily test narrow space like grooves in piston ring. The roughness measurement of the piston ring groove is a common requirement. But the groove is so narrow that skidded stylus cannot ...

Measuring range: 0.2 mm

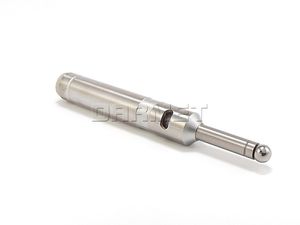

Standard - DIN 32876 Coefficient of linear expansion - 0,15 µm/°C Dimensions - Fixing shank: Ø 8 mm Insert thread: M2,5 Ball insert Ø 3 mm Cable: 2 m Connector: 5p DIN45322 Degree of protection - IP65 Weight - Mobile weight: 6 ...

Measuring range: 1 mm
Resolution: 0.0005 mm

... accuracy and high reliability of GemRed probes • - Patented technology ensures high accuracy and high reliability of GemRed probes • ...

Measuring range: 12, 30, 60 mm
Resolution: 1 µm

Magnescale® (formerly SONY Precision Technology) gauges are high-precision sensors which, through their unique magnetic measuring principle, permanently achieve a resolving power of up ...

Measuring range: 5, 12, 30 mm
Resolution: 0.1 µm

Magnescale® (formerly SONY Precision Technology) gauges are high-precision sensors which, through their unique magnetic measuring principle, permanently achieve a resolving power of up ...

Measuring range: 10 mm - 205 mm
Resolution: 0.5 µm

Magnescale® (formerly SONY Precision Technology) gauges are high-precision sensors which, through their unique magnetic measuring principle, permanently achieve a resolving power of up ...

Measuring range: 0 mm - 25 mm
Resolution: 1 mm - 2 mm

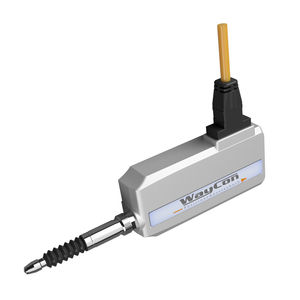

Key-Features: -Measurement range: 2, 5, 10 and 25 mm -Linearity: ±0.2 %, optional ±0.1 % -Resolution: <1 μm -Operating temperature: -40...+125 °C, optional up to +180 °C -Spring return and bellow -Connection: Connector M12 or cable -Protection ...

Measuring range: 0 mm - 50 mm
Resolution: 0.1 µm - 1 µm

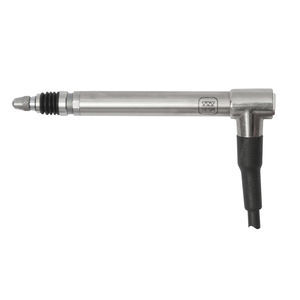

Key-Features: - High precision length gauges with photoelectric linear encoder - Measurement ranges up to 50 mm - Small range linearity up to 0.5 μm - Repeatability up to 0.3 μm - Resolution up to 0.1 ...
