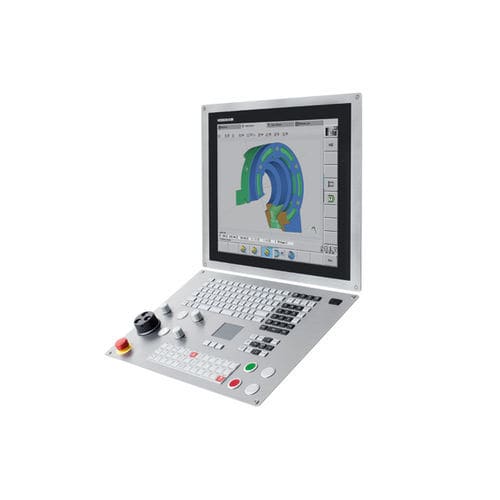

Lathe CNC controller CNC PILOT 640

5-axis

Program complex tasks with ease 24 control loops (22 with functional safety), including up to 6 spindles Multi-touch screen Up to 3 channels for asynchronous multi-slide machining Programming: smart.Turn, G codes, or cycles Extensive machining and probing cycle packages 5-axis simultaneous machining Fast block processing time (1.5 ms) TURN PLUS: program at the push of a button Application diversity Whether for counter spindles, driven tools, or C, Y, and B axes, the CNC PILOT offers numerous convenient and high-performing functions. Multi-channel machining even makes it possible to perform various machining steps with multiple slides at the same time. Automatic programming The TURN PLUS automatic programming function is the fastest route from a design drawing to the finished workpiece. After the contours of the workpiece blank and finished part have been entered, all that remains is to select the material and workholding equipment. TURN PLUS automatically takes care of the rest at the push of a button. Structured programming Programming is particularly easy thanks to smart.Turn functionality. All parameters are illustrated by context-sensitive support images and entered in forms. The program's machining blocks are well structured and easy to read. Handy machining cycles The CNC PILOT 640 is equipped with an extensive range of cycles. Cycles for turning, milling, and drilling are standard features. Convenient cycle programming is even possible for complex operations such as multiple plunging, simultaneous machining, trochoidal milling, and hobbing.
