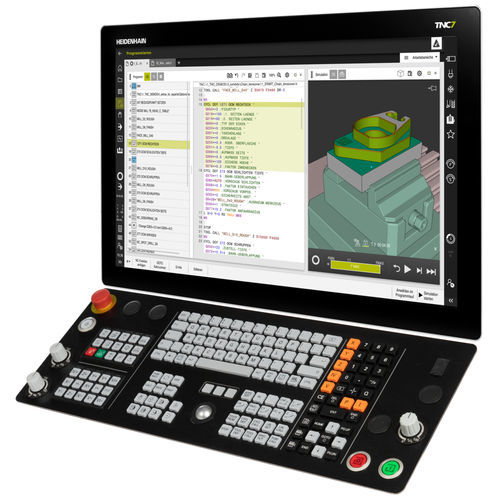

Machine tool CNC controller TNC7

5-axis

Intuitive, task-focused and customizable 24 control loops, four of which are for spindles Very high operating speed and fluid, intuitive multi-touch operation Milling, turning and grinding operations Intuitive machine setup with smart probing functions Graphically supported workholding alignment Fast block processing time (0.5 ms) High-end performance for perfect surfaces and exceptional accuracy Integrated process monitoring Customizable user interface The TNC7 supports users in all scenarios, including programming, machine setup and part measurement. The screen contents are easy to adapt to the given situation, providing complete information and functionality exactly where they are needed. And a special Dark mode feature simplifies operation under low ambient light. Smart programming The TNC7 supplements familiar Klartext programming with smart functions. The newly developed graphical programming feature allows the user to draw contours directly on the touchscreen. The TNC7 then converts the resulting drawing into a Klartext program. Older Klartext programs can also be easily modified. Familiar surroundings Operating elements such as the TNC keyboard are still used on the TNC7, offering excellent ergonomics even for prolonged work. Older NC programs can continue to be used. Working with the TNC7 is made simpler by a guided introduction to its new functions. Task-focused support The TNC7 provides intelligently designed solutions, including a rich package of cycles
