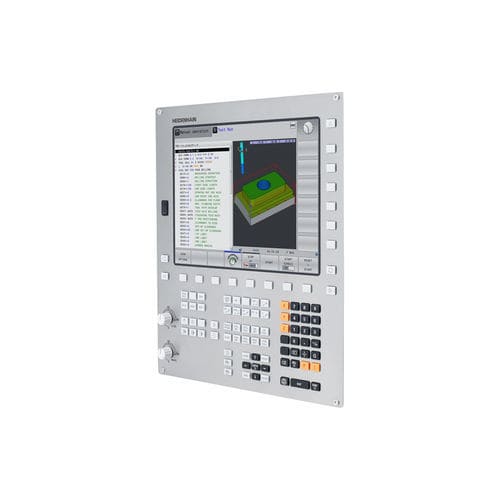

machine tool CNC controller
for machine tools
The Compact Contouring Control is designed with several reliable features for flexible operation in workshop-oriented programmability with HEIDENHAIN conversational programming or external programming. The device is suitably applicable with universal milling, drilling and boring machines to produce series or single part. It is also used in machine manufacturing, research and development prototype production, testing facilities repair departments, educational and training institutes.
TFT 15-inch color monitor provides clear visual access of all relevant information for programming, operating and inspecting the machine tool and control such as program blocks, comments and error messages. More information can be obtained through graphic support during program entry, test run and actual machining. The selectable split-screen display provides visual access of the part program blocks in one half of the screen and the graphics or the status display in the other half. During the program process, the status display provides complete information n tool position and current program.
