Impeller pump EL1204 UHH
slurryelectricsubmersible

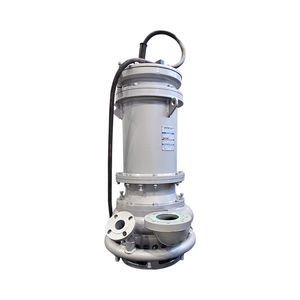

Impeller pump - EL1204 UHH - DRAGFLOW - slurry / electric / submersible
Impeller pump - EL1204 UHH - DRAGFLOW - slurry / electric / submersible
Add to favorites
Compare this product
Go to the DRAGFLOW website for more information

Characteristics

Technology
impeller
Fluid
slurry
Operation
electric
Priming
submersible
Mobility
stationary
Domain
industrial
Applications
dredging, lifting
Voltage
400 V, 460 V
Protection level
rugged
Other characteristics
flow
Flow

Max.: 320 m³/h
(11,300.69335 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Head

Max.: 120 m
(393'08" )

Min.: 0 m
(0'00" )

Power

Max.: 198 kW
(269.2 hp)

Min.: 120 kW
(163.15 hp)

Width

990 mm
(38.98 in)

Height

1,930 mm
(75.98 in)

Weight

1,850 kg
(4,078.55 lb)

Description

The EL1204 UHH is an electric pump with high abrasion resistance and can handle material concentrations up to 70%. It is the ideal solution for industrial, mining, and dredging applications in other fields, guaranteeing maximum efficiency and productivity. Main characteristics High efficiency agitator, reversible and high chrome for long life and continuous flow lifting of deposited sediments. Low rotation speed: reduced wear and long term efficiency. Rugged and heavy duty construction: highly resistant components for loaded and abrasive mixes.
