Over-voltage protection relay DG 3802

under-voltagethermalmotor

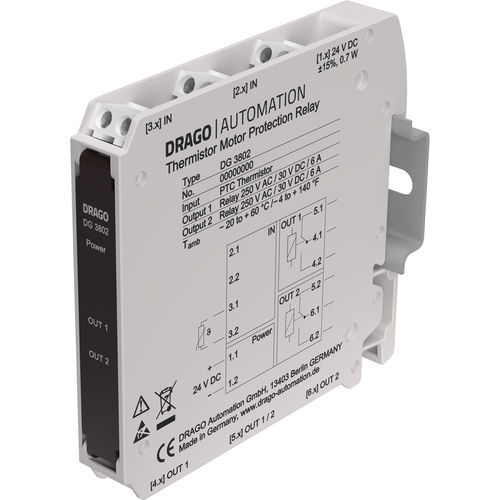

The Ther­mistor Motor Protec­tion Relay DG 3802 protects motors und machines against over-tem­pera­ture caused by heavy starting duties, braking, under-voltage, over-voltage and high swit­ching fre­quencies. Reliable overtemperature protection Up to 6 thermistors or bimetal switches, wire break detection in the sensor input Fault message in closed-circuit operation 2 output relays not activated in the event of fault, restart via auto-reset Status indication by LED Easy monitoring and switching point adjustment Protective Separation acc. to EN 61010 Protects service personnel and downstream devices against impermissibly high voltage High reliability and noise immunity No microprocessor, no integrated software Extremely slim design 12.5 mm slim housing for a simple and space saving DIN rail mounting 5 Years Warranty Defects occurring within 5 years from delivery date shall be remedied free of charge at our plant Additional appli­cations include monito­ring the tempe­rature of trans­formers, pumps, centri­fuges, motor bearings, gear­boxes, oil and coolants and the avoidance of thermal over­load in the event of impeded cooling and high ambient tempe­ratures. The tempe­rature is moni­tored directly at the winding using ther­mistors or bimetal switches. Up to 6 sensors can be connected in series. When a certain resistance is reached, the output relays switch off. Restarting takes place after cooling down via auto-reset. The motor protection relay works with open circuit operation and also detects broken wire in the sensor circuit. The monito­ring state is indi­cated by a yellow LED.
