Power cable 306 series

waterprooftwisted pairhigh-current

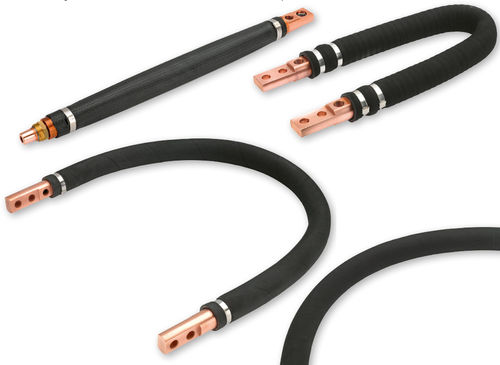

Water cooled single conductor cables used in welding devices Our water cooled cables for applications inside of welding machines or welding devices are available in different designs. Type B is equipped with contact ends according to our druseidt specification and the types C and D are in accordance with DIN EN ISO 8205-2. The connection between the contact ends and the conductor rope is realized by a solderless crimp-process, so that an optimized electrical resistance and a low loss current transfer is guaranteed. The construction of the conductor ropes as well as the high quality water hoses offer an excellent flexibility and mechanical stability. The cables can be used also for welding robot applications. The wall thickness (approx. 4,5 mm) of our standardized hose is in acc. to the description on page 73. For special applications, requiring a very high flexibility, we offer hoses with a reduced wall thickness. Additionally to our standardized designs we deliver cables according to your drawings/samples or wishes up to a cross-section of 1000 mm².
