Power cable 16740DINinsulatedstranded
Add to favorites
Compare this product
Characteristics
- Type
- power
- Format
- DIN
- Protection
- insulated
- Configuration
- stranded, round
- Core material
- copper
- Other characteristics
- highly flexible, connection, pre-assembled
- Nominal voltage
2 kV, 3 kV
- Temperature
Min.: -50 °C
(-58 °F)Max.: 180 °C
(356 °F)- Cross-section
Min.: 10 mm²
(0.02 in²)Max.: 300 mm²
(0.47 in²)
Description

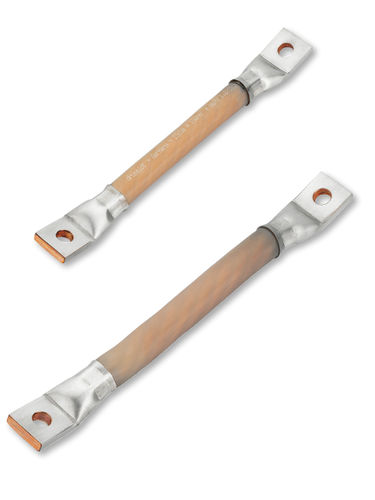

Highly flexible power connections 10-300 mm²
out of single insulated silicone extruded cables 1,8/3 kV
with cable shoe-shaped contact areas and additional insulation crimp
Technical data
Electrical conductor:
• Round stranded copper cable out of copper ETP 1-wires
acc. to DIN EN 13602
• Soft annealed, uncoated
• Single wire-Ø 0,07 mm (10-16 mm²)
Single wire-Ø 0,10 mm (25-300 mm²)
Contact sleeves:
• Seamless copper ETP-material, tinned
Insulation:
• Silicone approx. 60 Shore A
• Nature coloure
• Free of halogen, Chlorine content < 4 ppm
• Hardly inflammable, self-extinguishing
• Testing voltage 10 kV AC (Sparktest)
• Dielectric strength 20 kV/mm
Approvals and fire tests of the cable:
• UL-Style 3858
• DIN EN 60332-1-2 /VDE 0482-332-1-2
• DIN EN 60332-3-24/VDE 0482-332-3-24
• DIN EN 61034-2/VDE 0482-1034-2
• DIN EN 50305 /VDE 0260-305 Section 9.2
