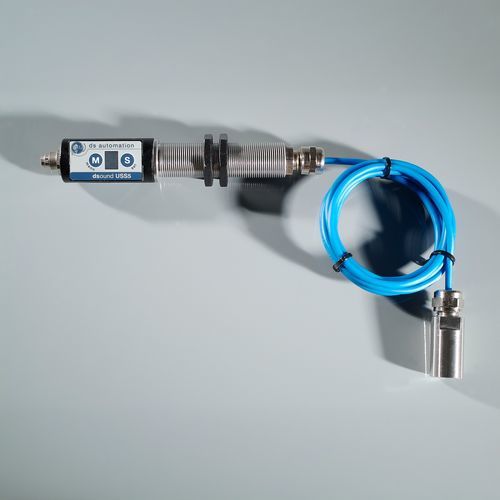

Piezoelectric vibration sensor dsound® USS5-KS/N/K

electronicacousticelectric

Product descriptionThe dsound® USS5-KS structure-borne sound sensor is a universal acoustic sensor with RMS and peak-value control, designed for precise monitoring of structure-borne sound in industrial environments. It is intended primarily for acoustic noise and functional testing as well as for process monitoring.Technical dataFrequency range: 30 Hz to 12.5 kHzSensitivity: 0.5g–500g (KS/N/K) or 0.05g–50g (KS/E/K)Integrated high-performance real-time signal processing and evaluation via digital signal processorInterference suppression using precomputed band-pass filtersSensor configuration and parameterization via onboard buttons or PC softwarePower supply: 10…30 VDC1 synchronization input1 potential-free switching outputRugged, compact housing M18 x 130 mm (protection class IP67)Operating temperature: -15 °C to +50 °CCharacteristics / Technical specificationsFrequency range: 30 Hz – 12.5 kHzSensitivity options: 0.5g–500g or 0.05g–50gReal-time signal processing with digital signal processorBand-pass filters for interference suppressionConfiguration: local via button or via PC softwarePower supply: 10–30 VDCInterfaces: 1 sync input, 1 potential-free switching outputHousing: M18 x 130 mm, IP67Operating temperature: -15 °C to +50 °C
