Process monitoring acoustic emission sensor dsound® USS5-KS/E/K

monitoringuniversalstructure-borne noise

Overview

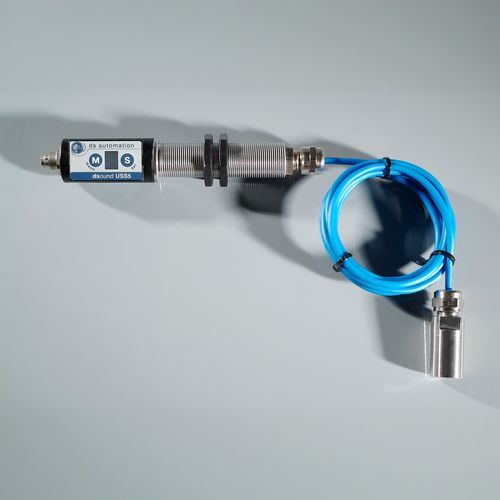

The dsound® USS5-KS structure-borne sound sensor is a universal sensor providing RMS and peak regulation for precise monitoring of structure-borne noise in industrial environments. It is intended for acoustic noise and function testing as well as process monitoring, offering configurable sensitivity ranges and a compact, IP67-rated M18 x 130 mm housing.

Key features

• Integrated real-time signal processing and evaluation by a digital signal processor
• Noise suppression using precalculated bandwidth filters
• Sensor configuration and parameterization via front button or PC software
• 1 synchronization input
• 1 potential-free switching output
• Robust, compact M18 x 130 mm housing (protection class IP67)

Technical specifications

• Frequency range (structure-borne sound): 30 Hz to 12.5 kHz
• Sensitivity: 0.5 g to 500 g (KS/N/K) or 0.05 g to 50 g (KS/E/K)
• Power supply: 10…30 VDC
• Interfaces: 1 synchronization input, 1 potential-free switching output
• Housing: M18 x 130 mm, IP67
• Operating temperature: -15°C to +50°C
