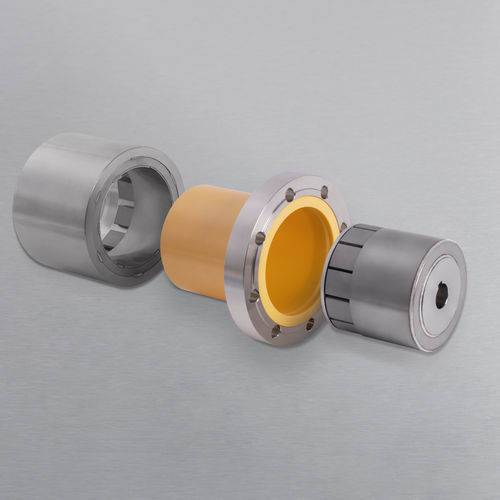

Magnetic coupling

with ceramic canistertransmissionfor pump

DST develops and manufactures high-performance standard magnetic couplings ranging from 1 to 1,200 Nm, as well as custom solutions ranging from 0.1 to 25,000 Nm. With a wide variety of material and magnet configurations, we can meet all customer requirements in detail. Our magnetic couplings are precise, powerful, and efficient, even when used with challenging media.

We use state-of-the-art calculation and simulation software to design the optimal magnetic coupling for every application. Our core competence lies in the manufacture of custom couplings in close collaboration with our customers.

Technical Data
Reliable alternative to conventional dynamic seals
Hermetically sealed torque transmission
Leak-free, wear-free, and maintenance-free
Resistant to aggressive media
ATEX approval (Directive 2014/34/EU)

Ceramic canister
Ceramic canister are a cost-effective and energy-efficient alternative to standard metal canister. They generate no eddy current losses and are characterized by particularly good chemical resistance.

Technical Data
Material: ZrO₂-MgO
Pressure: Vacuum to 60 bar depending on size
Temperature: -196°C to +450°C
No eddy current losses
