Oil rotary union TQ-1130004

for vacuumfor gas4-passage

Overview

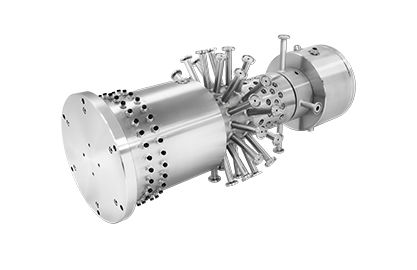

4-passage rotary union engineered to supply and vacuum vegetable oil for jar-coating in a mayonnaise filling line. Designed for washdown environments with an integrated IP68 rated electrical slip ring and a custom electrical manifold enclosure protecting circuits from caustic washdown.

Project Specifications

• Industry: Food & Beverage
• Media Type(s): Gas, other (vegetable oil supply/vacuum)
• Environment: Washdown; caustic washdown protection
• Material: Stainless steel
• Max. Pressure: 110 PSI (8 BAR); vacuum capability
• Max. Speed: 25 RPM

Passage & Dimensions

• Number of passages: 4
• Passage sizes: 0.160" (4.1 mm), 0.380" (9.7 mm)
• Through bore: 0.750" (19.1 mm)
• Overall diameter: 8.438" (214.3 mm)
• Overall length: 23.250" (590.6 mm)

Features

• Integrated IP68-rated electrical slip ring for reliable signal/power transfer in washdown conditions
• 30 specialized filling outlets, each with two electrical circuits for individual control
• Custom electrical manifold enclosure designed to resist caustic washdown
• Configured to supply and vacuum vegetable oil for jar coating in a food filling application

Technical specifications

• Model: TQ-1130004
• Industry: Food & Beverage
• Media: Gas and other (vegetable oil supply/vacuum)
• Environment: Washdown / caustic washdown protection
• Material: Stainless steel
• Number of passages: 4
• Passage sizes: 0.160" (4.1 mm), 0.380" (9.7 mm)
• Through bore: 0.750" (19.1 mm)
• Diameter: 8.438" (214.3 mm)
• Length: 23.250" (590.6 mm)
• Maximum pressure: 110 PSI (8 BAR) and vacuum capability
• Maximum speed: 25 RPM
• Electrical: IP68-rated slip ring integrated; 30 filling outlets with 2 electrical circuits per outlet
