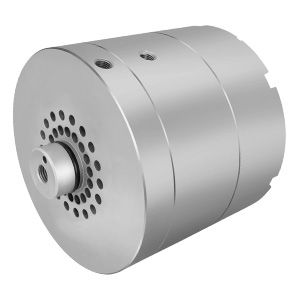

Chemical rotary union TJ-1240901
for food industry applicationsfor nozzlesfor the food industry

Chemical rotary union - TJ-1240901 - DSTI - Dynamic Sealing Technologies - for food industry applications / for nozzles / for the food industry
Chemical rotary union - TJ-1240901 - DSTI - Dynamic Sealing Technologies - for food industry applications / for nozzles / for the food industry
Add to favorites
Compare this product
Go to the DSTI - Dynamic Sealing Technologies website for more information

Characteristics

Medium
for chemicals, for food industry applications
Applications
for the food industry, for nozzles
Material
stainless steel
Rotational speed

Max.: 40 rpm
(251.33 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

Max.: 4 bar
(58 psi)

Min.: 0 bar
(0 psi)

Nominal size

50 mm
(1.969 in)

Description

Overview
  • Single-passage rotary timing valve designed to deliver peracetic acid (PAA) to multiple nozzles on a PET bottle washing line.
  • Custom timing mechanism calibrated to sequence media delivery to 36 nozzles at precise rotation degrees.
  • Integrated safety backup bearing system to prevent production stoppage in the event of primary bearing failure.


Key Features
  • Single-passage flow path for controlled chemical distribution
  • Custom timing valve configured for 36 nozzles
  • Redundant backup bearing system to maintain operation if primary bearing fails
  • Engineered for chemical media (peracetic acid, PAA) and washdown environments
  • Stainless steel construction for corrosion resistance


Application
  • Designed for PET bottle washing systems using peracetic acid (PAA) as the cleaning agent.
  • Suitable for food & beverage production lines requiring timed, repeatable distribution of chemical media to multiple nozzles.


Technical specifications
  • Industry: Food & Beverage
  • Media Type(s): Chemical (peracetic acid, PAA)
  • Environment: Washdown
  • Material: Stainless Steel
  • Max. Pressure(s): 60 PSI [4 BAR]
  • Max. Speed: 40 RPM
  • Number of Passages: 1
  • Passage Size(s): 1.969" [50 mm]
  • Through Bore: None
  • Diameter: 7.400" [188 mm]
  • Length: 8.610" [218.7 mm]
