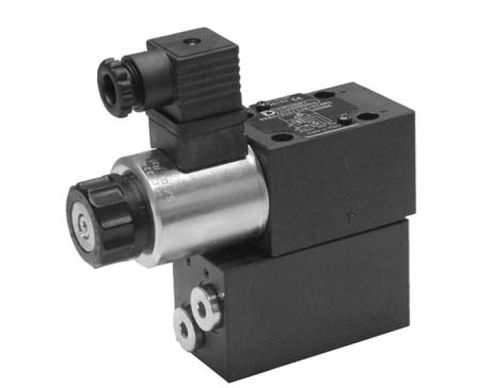

Hydraulically-operated valve PRE3 seriespressure-controlfor oilproportional
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulically-operated
- Function
- pressure-control
- Media
- for oil
- Other characteristics
- proportional
- Pressure
Max.: 350 bar
(5,076.3 psi)Min.: 0 bar
(0 psi)- Flow rate
Max.: 50 l/min
(13.21 us gal/min)Min.: 0 l/min
(0 us gal/min)
Description
— The PRE3 is a pilot operated pressure control valve with
electric proportional control and mounting interface in
compliance with ISO 4401 (CETOP RP 121H) standards.
— It is suitable to modulate the pressure in hydraulic circuits.
— The valve can be controlled directly by a current control
supply unit or by an electronic control unit to
exploit valve performance to the full (see at
paragraph 9).
— It is available with internal drainage on line T
or with external drainage on line A.
— Four pressure control ranges up to 350 bar
are available.
