Air blower TSL series
gascentrifugalsingle-stage

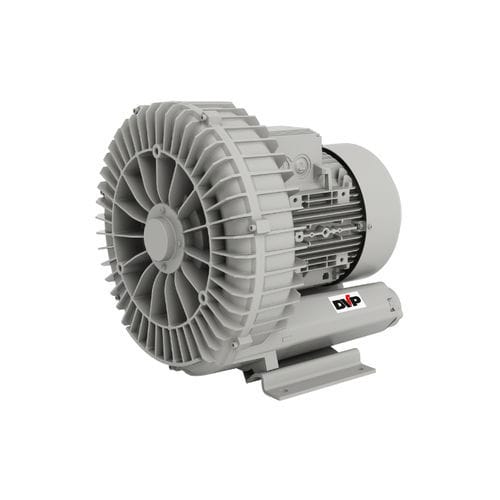

Air blower - TSL series - DVP Vacuum Technology - gas / centrifugal / single-stage
Air blower - TSL series - DVP Vacuum Technology - gas / centrifugal / single-stage
Add to favorites
Compare this product

Characteristics

Type
air, gas
Technology
centrifugal
Number of stages
single-stage
Applications
suction
Energy class
IE3
Other characteristics
small, single-phase, three-phase
Flow

Max.: 2,650 m³/h
(93,583.867 ft³/h)

Min.: 55 m³/h
(1,942.307 ft³/h)

Operating pressure

Max.: 460 mbar
(6.672 psi)

Min.: -310 mbar
(-4.496 psi)

Nominal power

Max.: 24.5 kW
(33.311 hp)

Min.: 0.2 kW
(0.272 hp)

Sound level

Max.: 84 dB

Min.: 70 dB

Weight

Max.: 247 kg
(544.54 lb)

Min.: 7 kg
(15.43 lb)

Length

Max.: 263 mm
(10.35 in)

Min.: 237 mm
(9.33 in)

Height

Max.: 270 mm
(10.6 in)

Min.: 225 mm
(8.9 in)

Description

The single stage TSL side channel blowers are conceived to suck or to compress gas and non-explosive mixtures. The absence of lubricants guarantees that no oils are present in the compressed fluids. The single stage TSL side channel blowers are equipped with single-phase (1~) motors and IE3 high efficiency three-phase (3~) motors. Some models are available with front suction inlet. The main advantages of single stage TSL blowers are: no maintenance no contamination of conveyed fluids silent operation small size and weight easy of installation stability and absence of vibrations Main application fields: air and gas conveyance on machines and plants requiring medium suction and delivery pressures, max. operational safety and low noise levels.
