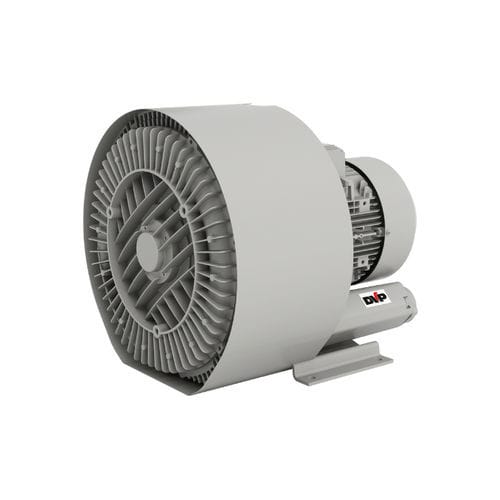

Air blower TDL seriesgascentrifugalsingle-stage
Add to favorites
Compare this product
Characteristics
- Type
- air, gas
- Technology
- centrifugal
- Number of stages
- single-stage
- Applications
- suction
- Energy class
- IE3
- Other characteristics
- small, single-phase, three-phase
- Flow
Min.: 85 m³/h
(3,001.747 ft³/h)Max.: 620 m³/h
(21,895.093 ft³/h)- Operating pressure
Min.: -460 mbar
(-6.672 psi)Max.: 620 mbar
(8.992 psi)- Nominal power
Min.: 0.7 kW
(0.952 hp)Max.: 17.3 kW
(23.521 hp)- Sound level
Min.: 55 dB
Max.: 78 dB
- Weight
Min.: 15 kg
(33.07 lb)Max.: 120 kg
(264.55 lb)- Length
Min.: 316 mm
(12.44 in)Max.: 735 mm
(28.94 in)- Height
Min.: 271 mm
(10.7 in)Max.: 495 mm
(19.5 in)
Description
The double stage TDL side channel blowers are conceived to suck or to compress gas and non-explosive mixtures. The absence of lubricants guarantees that no oils are present in the compressed fluids.
The double stage TDL side channel blowers are equipped with single-phase (1~) motors and IE3 high efficiency three-phase (3~) motors.
The main advantages of double stage TDL blowers are:
no maintenance
no contamination of conveyed fluids
silent operation
small size and weight
easy of installation
stability and absence of vibrations
Main application fields:
air and gas conveyance on machines and plants requiring high suction and delivery pressures, max. operational safety and low noise levels.
