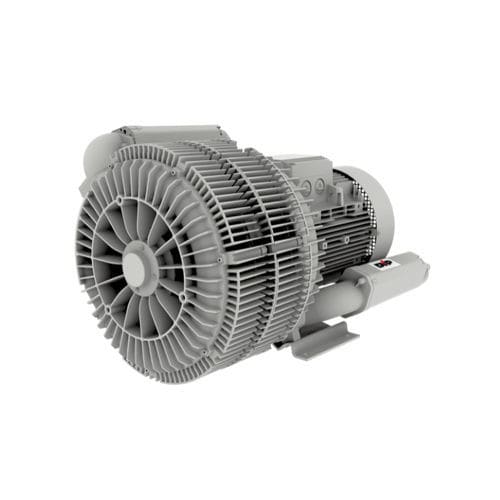

Air blower TTL seriescentrifugalsingle-stagesuction
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- centrifugal
- Number of stages
- single-stage
- Applications
- suction, gas
- Energy class
- IE3
- Other characteristics
- small
- Flow
Max.: 2,480 m³/h
(87,580.37 ft³/h)Min.: 500 m³/h
(17,657.33 ft³/h)- Operating pressure
Max.: 670 mbar
(9.718 psi)Min.: -650 mbar
(-9.427 psi)- Nominal power
11 kW, 12.6 kW, 15 kW, 17.3 kW
(14.956 hp, 17.131 hp, 20.394 hp, 23.521 hp)- Sound level
75 dB, 79 dB
- Weight
185 kg, 195 kg
(407.86 lb, 429.9 lb)- Length
863 mm, 905 mm
(33.98 in, 35.63 in)
Description
The triple stage TTL side channel blowers are conceived to suck or to compress gas and non-explosive mixtures. The absence of lubricants guarantees that no oils are present in the compressed fluids.
The triple stage TTL side channel blowers are equipped with IE3 high efficiency motors.
The main advantages of triple stage TTL blowers are:
no maintenance
no contamination of conveyed fluids
silent operation
small size and weight
easy of installation
stability and absence of vibrations
Main application fields:
air and gas conveyance on machines and plants requiring high suction and delivery pressures, max. operational safety and low noise levels.
