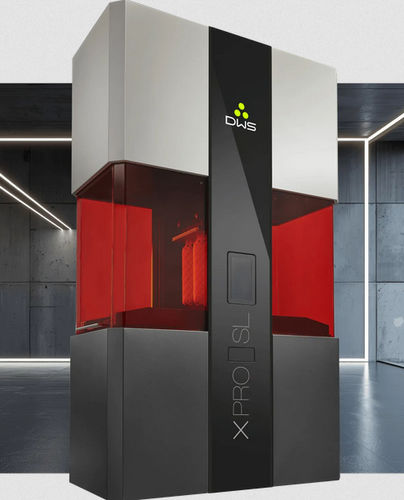

Resin 3D printer XPRO SL

industrialfor mold manufacturingprototyping

Product overview
XPRO SL is an industrial Laser Stereolithography (SLA) 3D printer designed for rapid production of large quantities and large-sized models. With a 500 mm Z axis and a 300 × 300 mm XY area, XPRO SL expands build capacity for accessories, fashion, footwear, leather goods and multiple manufacturing applications while preserving the precision and performance of the XPRO S platform.

Key features

• Integrated touch-screen PC for local control and monitoring
• Maxi working area: 300 × 300 × 500 mm (Z = 500 mm) for large-format parts
• Laser SLA technology for high-detail parts and consistent layer accuracy
• Wide range of compatible photopolymer materials (resins) for diverse industrial applications
• Optimised running and maintenance costs for production environments
• Supported file formats for easy workflow integration

Areas of Applications

• Gaskets
• Jigs & Fixtures
• Mechanics and parts
• Molding
• Production
• Prototyping

Technical data
Technology: Laser Stereolithography (SLA)
Working area: (x)300 × (y)300 × (z)500 mm
Laser source: Solid State BlueEdge®
Slice thickness (depends on the type of material used): 10–100 micron
Scanning method: Galvanometer
Software included: Nauta®+, Fictor®
Input file formats: .stl, .slc, .nauta, .fictor, .mkr, .3dm, .3ds, .ply, .obj, .lwo, .x
Machine size (W×D×H): 704 × 1446 × 2420 mm
Weight: 550 Kg
Operating temperature and humidity: 20°–25°C / 60% RH
Power supply: AC 230V / 50 Hz
Electrical consumption: 500W

Minimum Requirements
PC minimum: Windows 8 or higher*
Memory: 4 GB RAM*
Graphics: OpenGL 2.0 compatible or above*
I/O interfaces: 1 USB port, 1 Ethernet (TCP/IP) port
Connectivity: Active internet connection required for certain functions
* Built-in PC; these minimum specs apply when operating Nauta®+ with an external PC (not included). Recommended specs may vary with file complexity.

Specifications

• Model: XPRO SL
• Technology: Laser Stereolithography (SLA)
• Build volume (max): 300 × 300 × 500 mm
• Layer thickness: 10–100 micron (material dependent)
• Laser source: Solid State BlueEdge®
• Scan method: Galvanometer
• Software: Nauta®+, Fictor®
• Supported formats: .stl, .slc, .nauta, .fictor, .mkr, .3dm, .3ds, .ply, .obj, .lwo, .x
• Dimensions (W×D×H): 704 × 1446 × 2420 mm
• Weight: 550 Kg
• Operating conditions: 20°–25°C / 60% RH
• Power: AC 230V / 50 Hz
• Consumption: 500W
