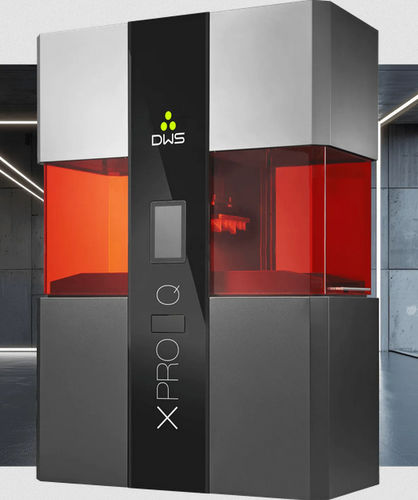

Resin 3D printer XPRO Q

industrialprototypingfor mold manufacturing

Overview
3D printing system developed for high-volume production and suitable for large-scale processes requiring maximum precision and resolution. XPRO Q delivers high productivity with a large build volume of 300 × 300 × 300 mm and fast printing speeds. It supports a broad range of DWS materials to realize industrial applications with accuracy and speed. Also available in HR laser version (XPRO QHR).

Key features

• Quad laser system: 4 Solid State BlueEdge® laser sources working simultaneously to reduce production times while maintaining high resolution.
• Working area: 300 × 300 × 300 mm (x, y, z).
• Slice thickness: 10–100 micron (material dependent).
• Scanning method: Quad-Galvanometer.
• Touch screen: integrated touch-screen PC for machine control.
• Cluster configuration: suitable for clustered/stacked configurations to scale production.
• Ease of use: TTT System (Tank Translation Technology) to reduce tank wear.
• Compatible with a wide range of DWS materials for industrial applications.

Areas of application

• Mechanical components and parts
• Moulding
• Production
• Prototyping

Technical data (table)
Technology: Laser Stereolithography (SLA)
Working area: (x)300 × (y)300 × (z)300 mm
Laser source: Solid State BlueEdge®
Slice thickness (depends on material): 10–100 micron
Scanning Method: Quad-Galvanometer
Software included: Nauta®+, Fictor®
Input File Format: .stl - .slc - .nauta - .fictor - .mkr - .3dm - .3ds - .ply - .obj - .lwo - .x
Machine size: 704 × 1446 × 2048 mm
Weight: 500 kg
Operating Temperature and Humidity: 20°–25°C / 60%
Power Supply: AC 230V / 50 Hz
Electrical Consumption: 500 W

Minimum requirements (table)
PC Minimum Requirements: Windows 8 or higher*
Memory: RAM 4 GB*
Graphics Card: OpenGL 2.0 compatible or above*
I/O Interfaces: 1 USB port - 1 Ethernet TCP/IP port
Connectivity: 1 active internet connection

Technical specifications

• Technology: Laser Stereolithography (SLA)
• Working area (build volume): 300 × 300 × 300 mm
• Laser: 4× Solid State BlueEdge® sources (quad-laser)
• Slice thickness: 10–100 μm (material dependent)
• Scanning: Quad-Galvanometer
• Included software: Nauta®+, Fictor®
• Supported input formats: .stl, .slc, .nauta, .fictor, .mkr, .3dm, .3ds, .ply, .obj, .lwo, .x
• Machine dimensions: 704 × 1446 × 2048 mm
• Weight: 500 kg
• Power: AC 230V / 50 Hz • Consumption: 500 W
• Operating conditions: 20–25°C / 60% humidity
• Control: integrated touch-screen PC
• Production scalability: cluster configuration capable
