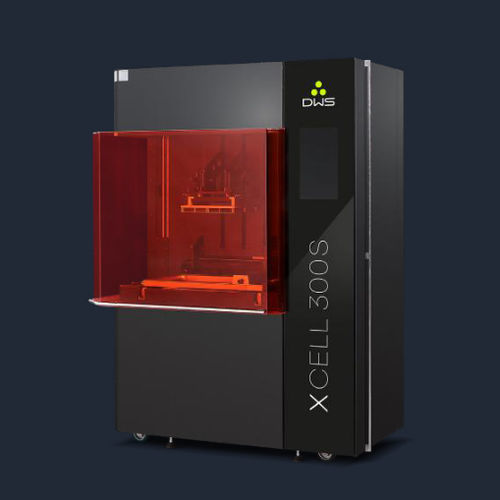

Resin 3D printer XCELL 300S

prototypingindustrialfor mold manufacturing

Overview
The XCELL 300S is an industrial stereolithography (SLA) 3D printer engineered for mid‑volume production of small and large components. Based on the XCELL technology platform, the system offers a light‑engine‑agnostic architecture, compatibility with a portfolio of over 100 proprietary materials and a quick material‑change concept to support efficient production workflows.

Main features

• Build volume: 300 x 300 x 550 mm (x × y × z)
• Blue-Edge single laser engine: delivers high-resolution prints and superior surface finish
• Light‑engine agnostic design: supports different irradiation solutions
• Smart Coating material management: optimizes viscosity, material quantity and displacement for repeatable results
• Minimal post-processing: excellent surface quality reduces finishing operations
• High accuracy: suitable for mold & die tolerance levels
• Automated operation: designed for unmanned runs and high automation
• Quick material change: reduces downtime between jobs
• Low energy consumption and designed for reduced maintenance
• Wide material support: portfolio of over 100 proprietary resins

Smart Coating
Smart Coating is a proprietary DWS material-management system that controls viscosity, applied quantity and material displacement within the build area. The system improves process repeatability and enables extended unmanned operation over multiple days.

Areas of Applications

• Gaskets and seals
• Jigs & fixtures
• Mechanical parts and assemblies
• Molding patterns and tools
• Production and end-use parts
• Prototyping and functional validation
• Shoe components and small batch parts

Technical data
Technology: Smart Coating Stereolithography (SLA)
Working area: (x)300 × (y)300 × (z)550 mm
Laser source: Single laser Solid State BlueEdge®
Slice thickness: depends on the material used
Scanning method: Galvanometer
Software included: Nauta®+, Fictor®
Supported input formats: .stl, .slc, .nauta, .fictor, .mkr, .3dm, .3ds, .ply, .obj, .lwo, .x
Machine size: 1503 x 899 x 1979 mm
Weight: 550 kg
Operating conditions: 20°–25°C / 60% RH
Power supply: AC 230 / 115 V, 50–60 Hz
Electrical consumption: 600 W

PC recommended requirements

• Processor: Latest Intel i7 or equivalent
• Memory: 16 GB RAM
• Graphics: NVIDIA Quadro or RTX with 6–8 GB VRAM
• Storage: SSD recommended
• I/O: 1 × USB, 1 × Ethernet (TCP/IP)
• Connectivity: active internet connection

Technical specifications

• Build volume: 300 × 300 × 550 mm
• Technology: Smart Coating Stereolithography
• Laser: Single laser Solid State BlueEdge®
• Scanning: Galvanometer
• Software: Nauta®+, Fictor®
• Machine dimensions: 1503 × 899 × 1979 mm
• Weight: 550 kg
• Operating conditions: 20°–25°C / 60% RH
• Power: AC 230 / 115 V, 50–60 Hz
• Electrical consumption: 600 W
