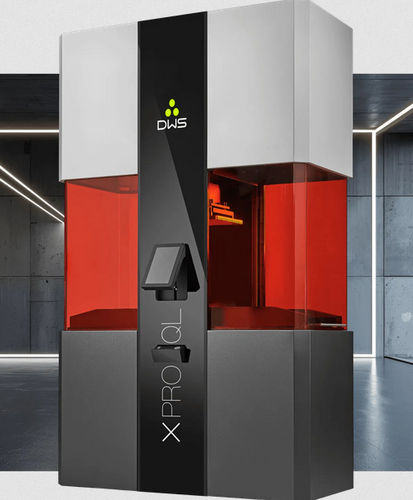

Resin 3D printer XPRO QL

industrialfor mold manufacturingprototyping

Overview
XPRO QL is a Laser Stereolithography (SLA) 3D printing system designed for large production volumes and precise micro-features. It provides a wide build volume of 300 × 300 × 500 mm and supports a broad range of materials developed by DWS. An HR laser variant (XPRO QLHR) is available for ultra-high-resolution work such as microfluidics and fine jewelry.

Key benefits / Highlights

• Wide working area: 300 × 300 × 500 mm
• Quad‑Laser system with 4 Solid State BlueEdge® laser sources to reduce production time while preserving resolution
• HR laser option (XPRO QLHR) for ultra-high resolution micro-features
• Integrated touchscreen monitor PC for local control
• Supports cluster configuration for scalable production
• TTT (Tank Translation Technology) to reduce tank wear and simplify maintenance

Areas of application

• Mechanical components and functional parts
• Mold and tooling prototypes
• Production runs and small-batch manufacturing

Printer technical data (table)
Technology: Laser Stereolithography (SLA)
Working area: (x)300 × (y)300 × (z)500 mm
Laser source: Solid State BlueEdge®
Slice thickness (depends on material): 10–100 µm
Scanning method: Quad‑Galvanometer
Software included: Nauta®+, Fictor®
Input file formats: .stl · .slc · .nauta · .fictor · .mkr · .3dm · .3ds · .ply · .obj · .lwo · .x
Machine size: 704 × 1446 × 2420 mm
Weight: 550 kg
Operating temperature and humidity: 20°–25°C / 60%
Power supply: AC 230V / 50 Hz
Electrical consumption: 500 W

Minimum requirements (PC / connectivity)
PC minimum requirements: Windows 8 or higher*
Memory: RAM 4 GB*
Graphics: OpenGL 2.0 compatible or above*
I/O interfaces: 1 USB port; 1 Ethernet TCP/IP port
Connectivity: Active internet connection required for some functions
*Note: Built-in PC; these minimums apply when operating Nauta®+ from an external PC (not included). Recommended specs depend on file complexity.

Additional features

• Four Solid State BlueEdge® laser sources operating simultaneously
• Integrated touchscreen monitor PC for machine operation
• Cluster configuration capability for scalable throughput
• TTT (Tank Translation Technology) to minimize tank wear and extend service intervals

Characteristics / Technical specifications

• Model: XPRO QL (also available as XPRO QLHR for HR laser)
• Technology: Laser Stereolithography (SLA)
• Working volume: 300 × 300 × 500 mm
• Laser: Solid State BlueEdge® (4 sources)
• Slice thickness: 10–100 µm (material dependent)
• Scanning: Quad‑Galvanometer
• Included software: Nauta®+, Fictor®
• Accepted file formats: .stl, .slc, .nauta, .fictor, .mkr, .3dm, .3ds, .ply, .obj, .lwo, .x
• Machine dimensions: 704 × 1446 × 2420 mm
• Weight: 550 kg
• Operating conditions: 20°–25°C / 60% humidity
• Power: AC 230V / 50 Hz; Consumption: 500 W
