triaxial accelerometer / piezoelectric / IEPE
3059A

{{requestButtons}}

Characteristics

  • Number of axes:

    triaxial

  • Technology:

    piezoelectric, IEPE

  • Acceleration range:

    490 m/s² (1,608 ft/s²)

  • Frequency:

    Max.: 8,000 Hz

    Min.: 0.3 Hz

Description

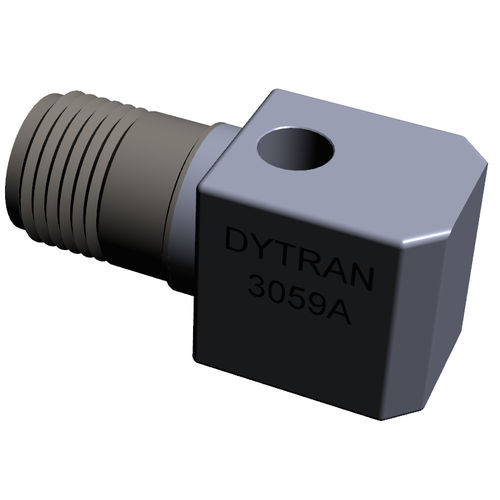

The Model 3059A by Dytran is highly designed to promote an excellent quality functionality and performance for very specific applications. It is an IEPE piezoelectric accelerometer which is provided with a 1/4-28 thru-hole mount and a 2-pin MIL-C-5015 radial connector which helps in the proper utilization of the device. It is integrated with a configuration which enables the sensor to be rotated 360° in association to a secure sensor installation. It is available with a 100 mV/g sensitivity incorporated with a ceramic shear material covered with a rugged stainless steel casing to prevent the device from rusting.
