triaxial accelerometer / piezoelectric / IEPE / shear
3176B

{{requestButtons}}

Characteristics

  • Number of axes:

    triaxial

  • Technology:

    piezoelectric, IEPE, shear

  • Other characteristics:

    rugged, low-frequency, EMI

  • Acceleration range:

    490 m/s² (1,608 ft/s²)

  • Frequency:

    Max.: 10,000 Hz

    Min.: 0.3 Hz

Description

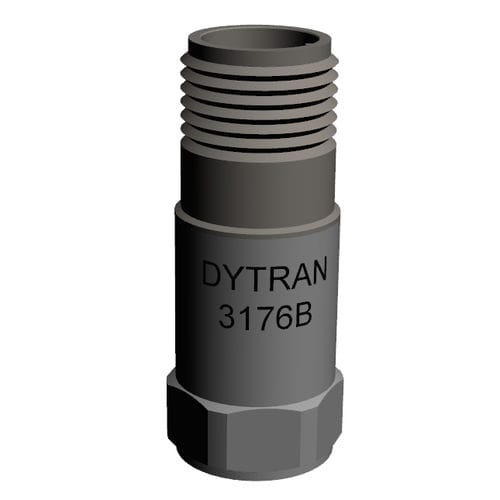

The Model 3176B by Dytran is ideally designed to provide an excellent quality performance and functionality for very specific purposes. It is a non-expensive IEPE accelerometer which is built with a 100 mV/g and a 0.3 Hz low frequency response rate. The high quality apparatus is encapsulated within a stainless steel housing which features a ceramic shear sensing material integrated with 2-pin MIL-C-5015 axial connector and 10-32 stud mounting capabilities. It is also sealed to provide a dependable capability in several humid and dirty areas.
