triaxial accelerometer / piezoelectric / IEPE / high-sensitivity
3202A

{{requestButtons}}

Characteristics

  • Number of axes:

    triaxial

  • Technology:

    piezoelectric, IEPE

  • Other characteristics:

    high-sensitivity

  • Acceleration range:

    490 m/s² (1,608 ft/s²)

  • Frequency:

    Max.: 5,000 Hz

    Min.: 0.5 Hz

Description

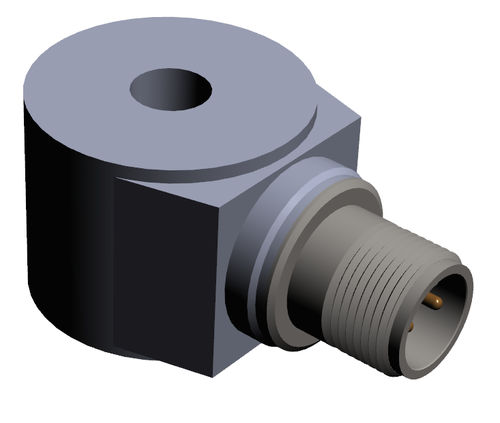

The Dytran model 3202A is a sensitive, ring style IEPE piezoelectric accelerometer. Its internal Faraday shield provides immunity against electrostatic noise. It has a radial 2-pin MIL-C-5015 connector and also a 1/4-28 through-hole mount. This feature helps the sensor to be turned at a degree of 360° before securing so that installation is easier.

The 3202A model has a sensitivity of 100 mV/g, and a low end frequency response of 0.5 Hz. It is packaged in a stainless steel housing and has a ceramic shear sensing element. Hermetically sealed units, these provide reliable functioning even in high humidity or dirty environments. The units are isolated in order to avoid EMI/ ground loop interference.
