single-axis accelerometer / vibrating / miniature
7521A2

{{requestButtons}}

Characteristics

  • Number of axes:

    single-axis

  • Technology:

    vibrating

  • Other characteristics:

    miniature

  • Acceleration range:

    49 m/s² (161 ft/s²)

  • Frequency:

    Max.: 1,500 Hz

    Min.: 0 Hz

Description

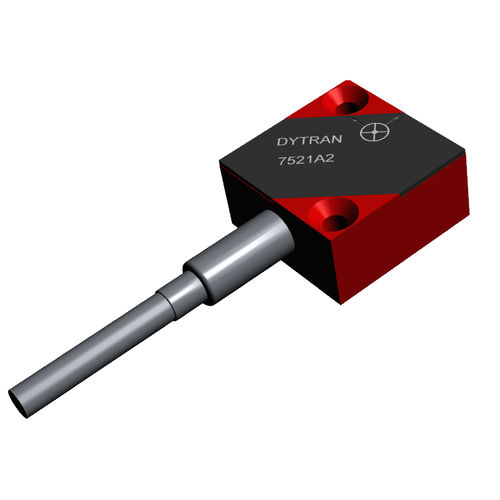

The Dytran model 7521A2 is a single axis DC response accelerometer. The device is developed as an easy and cost-saving solution for low level and low frequency vibration measurements.

It is made for zero-to-medium frequency applications. The Dytran 7521A2 features a low-end frequency response of 0 Hz, and an upper frequency range of 1,500 Hz, with a total weight of just 3.7 grams.

The unit is useful for airbag testing, crash testing, seismic monitoring, tilt measuring and robotics applications.
