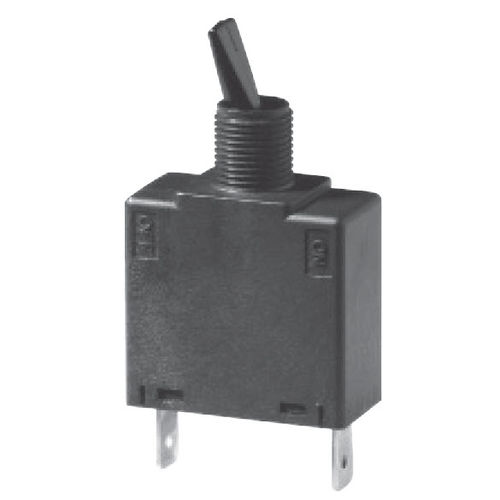

Hydraulic-magnetic circuit breaker 8330 series2-pole
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic-magnetic
- Electrical characteristics
- 2-pole
- Primary current
Min.: 0.1 A
Max.: 30 A
- VAC
Min.: 125 V
Max.: 250 V
- VDC
80 V
Description
Type: 8330
Single and double pole magnetic and hydraulic-magnetic circuit breaker with trip-free mechanism and toggle, push or push/pull, or rocker actuation. A choice of fast magnetic only or hydraulically delayed switching characteristics (S type MO or HM CBE to EN 60934/ IEC 934) ensures suitability for a wide range of applications. Low temperature sensitivity at rated load. Industry standard dimensions and threadneck or snap in panel mounting.
Approved to CBE standard EN 60934 (IEC 60934).
