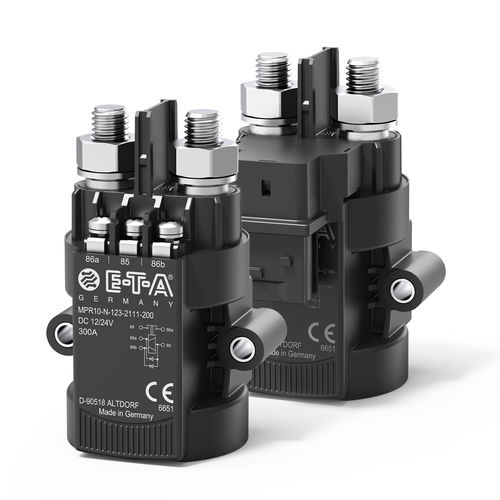

Current protection relay MPR10
power1 NOfor electric vehicle charging stations

current protection relay
current protection relay
Add to favorites
Compare this product


Characteristics

Measured/monitored value
current, power
Contact configuration
1 NO
Applications
for electric vehicle charging stations, for forklift trucks
Mounting
plug-in
Tripping current

100 A, 200 A, 300 A

Trigger voltage

12 V, 24 V, 48 V

Description

The single pole power relays MPR10 and HPR10 have been designed for switching high current loads and for disconnecting the battery from the on-board electrical system. The mechanical power relay type MPR10 is: • are energy saving and help to reduce the CO2 emissions • are ideally suitable for high loads • can easily be integrated into existing vehicle designs • can directly be used without any changes on the controlgear The MPR10 is a bistable relay, i.e. a short current impulse is required only for the switching operation. The contact is then held in its position by permanent magnets without current. NEW! Now also available with robust plug-in connector - compatible with the HDSCS connector series NEW! Extension to 48 V in the load circuit • through quick and fault-free mounting • thanks to isolation of the control contacts from environmental influences • through high resistance against vibration and mechanical stress
