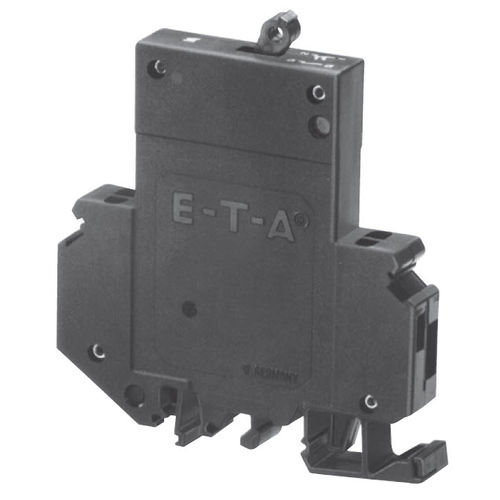

Thermal-magnetic circuit breaker 2210-T2 series3-polemodular
Add to favorites
Compare this product
Characteristics
- Type
- thermal-magnetic
- Electrical characteristics
- 3-pole
- Operating mode
- modular
- Primary current
Max.: 32 A
Min.: 0.1 A
- VAC
433 V
- VDC
65 V
Description
One, two and three pole thermal-magnetic circuit breakers with trip-free mechanism and toggle actuation (S-type TM CBE to EN 60934/IEC 934). Featuring a combi-foot design for both symmetric and asymmetric rail mounting. Available with auxiliary contact (1 x N/O or 1 x N/C) for status signalling. Two and three pole models are internally linked to ensure that both/all poles trip in the event of an overload on one pole, even if the actuator is held in the ON position. This CBE can be supplied in current ratings up to 32 A with a choice of characteristic curves. All screw terminals are recessed for safety.
Approved to CBE standard EN 60934 (IEC 60934).
