Differential pressure flow meter DSV

pitot tubevolumefor air

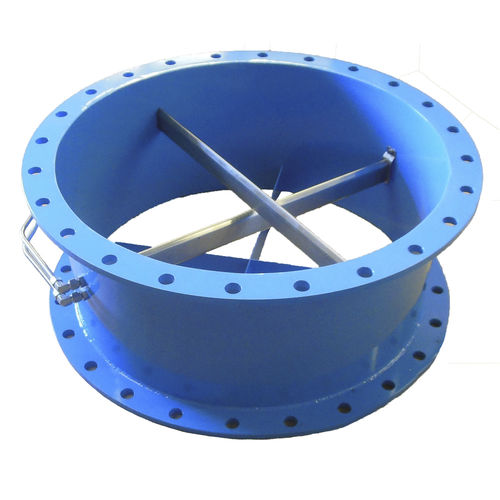

The DSV Duct Section for Round ducts allows easy installation of VAP Pitots within new or existing duct work. The VAP Pitots are mounted within a flanged duct section and the pitots are tubed together for easy installation and setup. The DSV for Round ducts is designed for use within both Carbon Steel or Stainless Steel duct work and are perfect for both clean air or for particulate-laden air. The Stainless Steel DSV is manufacted out of 304 Stainless Steel and offers superior corrosion resistance. The DSV is a flanged spool section that generally comes with standard angle ring flanges, however 150 lb flanges as well as custom flanges are also available upon request. Featuring bolt on installation, the Stainless Steel DSV is very simple to install. It can be used in air streams that are clean as well as particulate-laden and the integral pitots can either be manufactured out of aluminum or stainless steel. The DSV will require 1 foot of duct run for installation as the length of any sized DSV is 12" in length. The Carbon Steel DSV is manufacted out of a powder coated Carbon Steel that resists both wear and corrosion. The DSV is a flanged spool section that generally comes with standard angle ring flanges, however 150 lb flanges as well as custom flanges are also available upon request. Featuring bolt on installation, the Carbon Steel DSV is very simple to install. It can be used in air streams that are clean as well as particulate-laden and the integral pitots can either be manufactured out of aluminum or stainless steel. The DSV will require 1 foot of duct run for installation as the length of any sized DSV is 12" in length.
