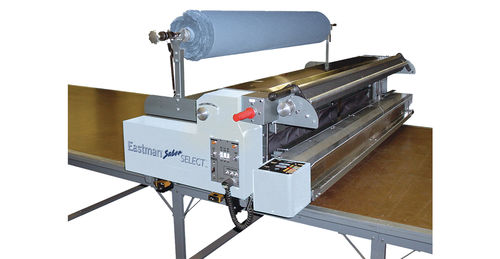

Manual spreading machine Saber Select™

semi-automaticfor textiles

The Eastman Saber Select™ positive feed system is designed for spreading rolls of material with weights up to 500 or 800 lbs. (227/363 kg). Available in both semi-automatic and manual modes, the Select system features electric edge control and up to 80 yards/minute of spreading capabilities. • Variable positive feed, with electro-magnetic clutch engagement. • Solid state drive with dynamic braking • Heavy duty 3/4HP drive • Ergonomic speed controller with built in direction switch. • Guided cut-off knife with motorized elevator lift • Table guided (no track required) • Four poly wheels on table (2 wheel drive) • Electric edge control • Heavy duty welded steel construction • Heavy duty cloth bar with cones • Available in left or right hand configuration Options • Motorized knife box • End catchers with tuck blade assembly • Track wheels • Turntable • Expandabar • Flat fold attachment • Custom material width capacities available in 6″ (15.24 cm) increments. • Floor mounted riding platform Spreading Modes • Face-up • Face-to-face Additional Information Roll Weight - Maximum : 500 lbs. (227 kg) 800 lbs. (363 kg) optional Roll Diameter - Maximum : 28 in. (71 cm) Material Width : 66 – 72 in. (168-183cm) Custom working widths available upon request. Spread Height : 6 in. (15.2 cm) Spreading Speed : 80 yards/min. (73m/min) Power Requirements : 110V 220V
