Laser alignment system XT550 - EX

shaftexplosion-proofATEX

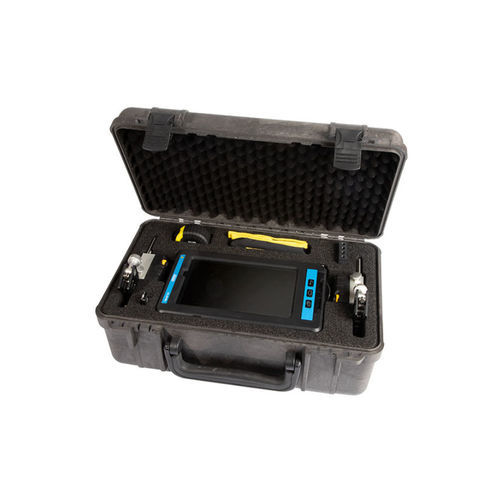

The Easy-Laser® XT550 Shaft system is developed for hazardous areas and is easily operated through our XT Alignment app. It is an advanced measurement system for alignment of horizontal and vertical/flange mounted rotating machinery.​ With XT550 you can carry out the following: Align the machine Check base twist Check bearing play Check soft foot Document and share the results The XT550 alignment system has all the features of the XT660 with one major difference – the measuring units are intrinsically safe, which allows the system to be used in potentially hazardous areas where explosive gas or dust particles may be present (Zone 1/21). The system comes with Easy-Laser’s dot laser technology, allowing you to measure large machinery and long spans. The measuring units are approved in accordance with the latest EX directive*, and are rated both IP66 and IP67 water and dust proof. Choose your own display unit System XT550 comes in two configurations; with or without the EX approved ecom Tab-Ex® display unit. The XT Alignment app runs on most iOS and Android units, as well as our own XT display unit. However, those are not allowed in potentially explosive areas, but makes for a perfect complement for use in other places. Note. For use in EX-classed areas, the mobile device you’re using must be approved for these areas. Always check for approval labels before entering potentially explosive areas. The XT display unit is not EX approved. *The XT50 measuring units are EX approved which means means they comply with the Essential Health and Safety Requirements relating to the design of products intended for use in potentially explosive atmospheres.
