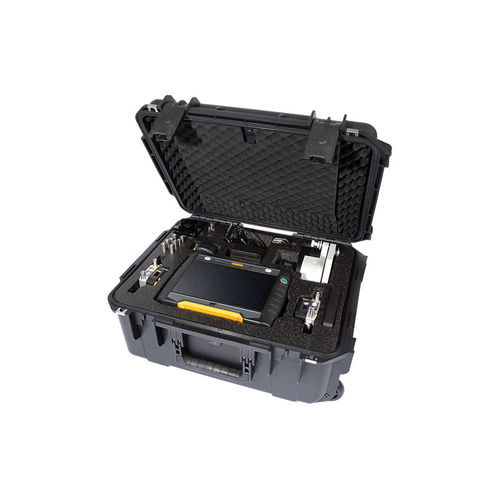

Laser alignment system XT770 +GEO

shaftfor rotating machinerymeasurement

The XT770 Shaft+GEO system has all the programs and functions you need to install and keep your machines up and running. Compared to the standard XT770 Shaft it also comes with a separate laser transmitter. With XT770 Shaft+GEO you can carry out the following: Align the machine Check soft foot ​Check twist and flatness Check straightness Measure machine movement over time With XT770 Shaft+GEO you can perform shaft alignment of horizontally and vertically/flange mounted machines, and align machine trains with an unlimited number of machines. You can also measure straightness, flatness and twist of foundation, soft foot, bearing clearance, and more. 2 axis PSDs (position-sensitive detectors) permits adjustment of your machine both vertically and horizontally at the same time, with measuring units in any position. You have a choice of five shaft alignment measurement methods, e.g. continuous sweep and multipoint. This gives you the flexibility you need to achieve the perfect measurement result. Read more about the different measurement methods under the Features tab. Laser transmitters for geometric measurements The system includes laser transmitter XT20 or XT22, which allow you to take flatness and straightness measurements with the highest reliability and precision. XT20 is perfect for checking flatness and straightness during machine installation or surface flatness of machined parts. XT22 also lets you point the laser beam perpendicular to the laser plane. It provides more options for geometrical measurements, and even higher accuracy and precision. Learn more about the transmitters
