Laser alignment system XT770

shaftfor rotating machinerymeasurement

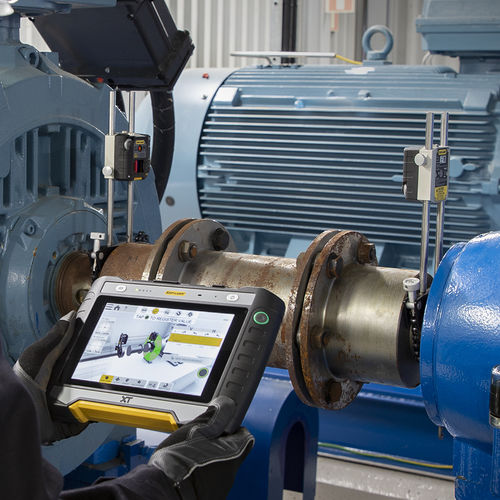

With Easy-Laser® XT770 Shaft you can solve measurement and alignment problems of all kinds on most machine types. With this system you can carry out the following: Align the machine ​Check base twist Check bearing play Check soft foot Measure machine movement over time Info With Easy-Laser XT770 Shaft you can perform shaft alignment of horizontally and vertically/flange mounted machines, and align machine trains with an unlimited number of machines. You can also measure twist of foundation, soft foot, bearing clearance, and more. 2 axis PSDs (position-sensitive detectors) permits adjustment of your machine both vertically and horizontally at the same time, with measuring units in any position. We call it 360° Live adjustment. With the XT770 you have a choice of several different shaft alignment measurement methods, e.g. continuous sweep and multipoint. This gives you the flexibility you need to achieve the perfect measurement result. Read more about the different measurement methods under the Features tab. Dynamic measurement The EasyTrend program allows you to keep track of machine movement over time, during operation. This is useful when checking for thermal expansion and pipe strain issues for example. This type of measurement requires special DM brackets which can be ordered separately. Read more about dynamic measurement. Bore alignment with XT770 The Bore center program is used together with the Bore bracket kit (accessory) and its XT24 laser transmitter. Either you use the XT70-M unit as detector, included with the XT770 system, or upgrade with the XT9 detector (accessory) to be able to measure smaller diameters.
