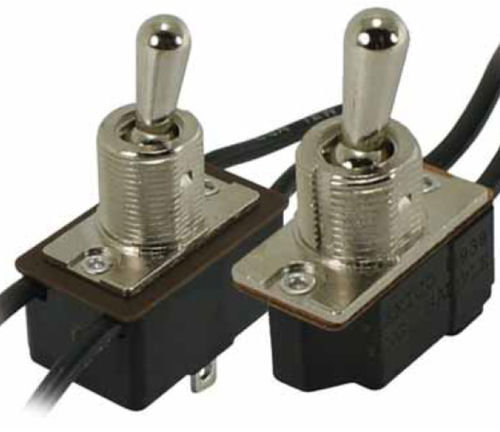

Lever switch 837 seriessingle-poleACDC
Add to favorites
Compare this product
Characteristics
- Type
- lever
- Number of poles
- single-pole
- Other characteristics
- AC, DC, for general purposes, electromechanical
- Primary current
3 A, 6 A, 7 A
- Voltage
125 V, 250 V
- Operating temperature
Max.: 66 °C
(151 °F)Min.: -18 °C
(-0 °F)
Description
The AC/DC Rated General Purpose line of switches for use in small motor applications employs a Quick-make/Quick-break contact mechanism. The resultant high-speed movement eliminates the “teasing” of the switch and reduces the pitting of the contact surfaces due to arcing. Self-cleaning and wiping contact action assures positive contact on switch operation.
• Bright nickel-plated finish on toggle lever and bushing provides added protection
• 0.068 x 0.035 in (1.73 x 0.89 mm) deep keyway provides anti-rotation feature
• • Integrated Wire Leads
• Screw Terminals
• Solder Lug Terminals
