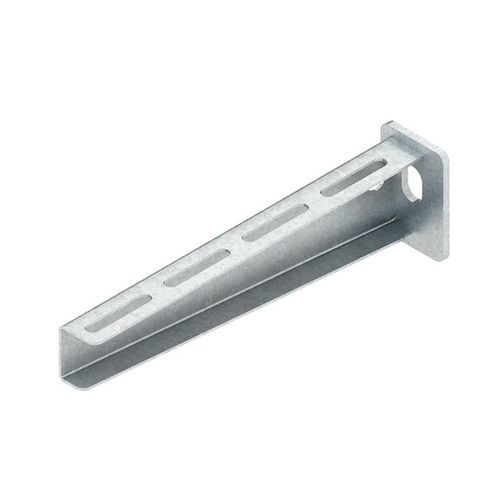

Bracket support KTA series

stainless steelwall-mountedoverhead

Description
Overhead hanger and wall bracket, standard variant, lengths ranging from 110 to 610 mm, load capacity 2.5 kN. Material: stainless steel (material code 1.4571 / AISI 316Ti), stained. Accessories included.

Material / Finish
Material: Stainless steel
Finish: Stained

Dimensions available
Product | EAN | Height (mm) | Length (mm)
KTA 100 E5 | 4013339842605 | 45 | 110
KTA 200 E5 | 4013339842629 | 55 | 210
KTA 300 E5 | 4013339842643 | 65 | 310
KTA 400 E5 | 4013339842667 | 75 | 410
KTA 500 E5 | 4013339917402 | 90 | 510
KTA 600 E5 | 4013339917426 | 110 | 610

Notes
Product available in multiple sizes (see dimensions table above). Datasheets are available for each size and provide detailed technical information and compatibility.

Features / Technical specifications

• Type: Overhead hanger and wall bracket
• Series / Model: KTA E5
• Material: Stainless steel (material code 1.4571 / AISI 316Ti)
• Finish: Stained
• Standard lengths: 110 mm to 610 mm (see variants)
• Load capacity: 2.5 kN
• Color: None (natural stainless steel)
• Accessories: Included
• Available variants and EANs: listed in the Dimensions available block above
