Stainless steel construction profile U 5050 series
U-shapedpunched

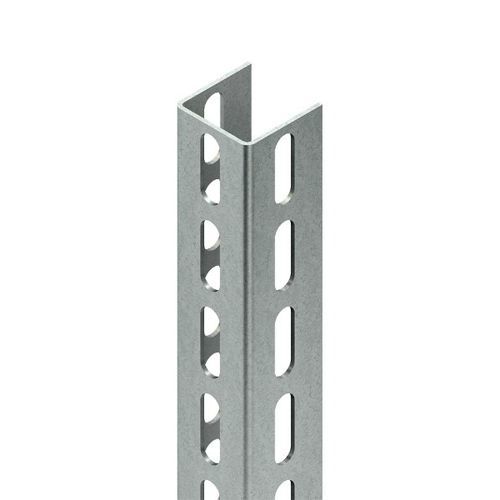

Stainless steel construction profile - U 5050 series - Ebo Systems SAS - U-shaped / punched
Stainless steel construction profile - U 5050 series - Ebo Systems SAS - U-shaped / punched
Stainless steel construction profile - U 5050 series - Ebo Systems SAS - U-shaped / punched - image - 2
Stainless steel construction profile - U 5050 series - Ebo Systems SAS - U-shaped / punched - image - 3
Add to favorites
Compare this product
Go to the Ebo Systems SAS website for more information

Characteristics

Material
stainless steel
Configuration
U-shaped
Other characteristics
punched
Width

50 mm
(1.969 in)

Height

50 mm
(1.969 in)

Description

Description
U-profile in stainless steel with a 50×50 mm cross-section. Available lengths from 300 mm to 6000 mm. Perforated profile with hot-dip galvanised finish according to DIN EN ISO 1461.

Material and finish
Material: Stainless steel (grade 1.4571 / AISI 316Ti)
Finish: Hot-dip galvanised (DIN EN ISO 1461)
Color: Natural stainless / galvanised finish

Dimensions available (excerpt)
Product | EAN | Length (mm)
U 5050/300 E5L | 4013339965977 | 300
U 5050/400 E5L | 4013339965984 | 400
U 5050/500 E5L | 4013339965991 | 500
U 5050/600 E5L | 4013339966004 | 600
U 5050/800 E5L | 4013339966011 | 800
U 5050/1000 E5L | 4013339966028 | 1000
U 5050/6000 E5L | 4013339966035 | 6000

Datasheets
Datasheets available for each length variant (PDFs).

Technical characteristics / specifications
  • Type: U-profile
  • Model / series: U 5050 E5L
  • Material: Stainless steel (1.4571 / AISI 316Ti)
  • Section (cross-section): 50 × 50 mm
  • Available lengths: 300, 400, 500, 600, 800, 1000, 6000 mm
  • Perforation: Perforated profile
  • Finish: Hot-dip galvanised, compliant with DIN EN ISO 1461
  • Color: Natural stainless / galvanised finish
  • Variant identifiers and EANs: U 5050/300 E5L (EAN 4013339965977), U 5050/400 E5L (EAN 4013339965984), U 5050/500 E5L (EAN 4013339965991), U 5050/600 E5L (EAN 4013339966004), U 5050/800 E5L (EAN 4013339966011), U 5050/1000 E5L (EAN 4013339966028), U 5050/6000 E5L (EAN 4013339966035)
