Ball bearing valve V-3MH

manualfor waterfor gas

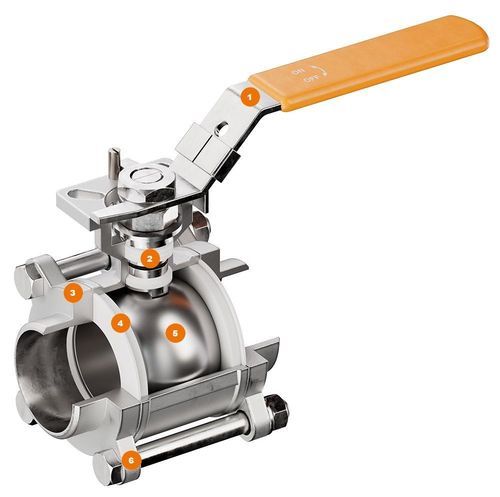

V-3MH – THREE-PIECE. VERSATILE. EASY TO MAINTAIN. Ball valve for demanding processes and applications The V-3MH is a three-piece ball valve designed for industrial use, suitable for handling liquids, gases, and steam. Its construction allows for flexible integration into existing systems, regardless of flow direction. Maintenance can be performed directly in-line, eliminating the need for complete removal. This helps reduce effort and minimizes downtime. Quality in detail - Hand Lever: The hand lever with integrated drop latch prevents accidental actuation of the ball valve. The operating lock can be latched in the opened and closed positions alike. The integrated travel stops ensure that the ball stays positioned precisely, avoiding malfunction and increasing operating safety. The ball valve can be optionally secured by a padlock to prevent accidental actuation. - Shaft Packing: The P-RTFE shaft packing effectively prevents medium from escaping and protects the shaft from contamination and debris. The adjustable shaft packing also enables precise adjustment to your specific needs. - Valve Body: The stainless-steel body is robust, durable, and ideal for demanding applications. High-quality stainless steel ensures maximal strength and longevity. Clear marking permits traceability. - Seat: The R-PTFE seat offers optimal fit while being characterized by its high chemical resilience. The carefully coordinated material selection reduces wear and friction while extending service life. - Ball: The precisely machined, high-gloss-polished stainless-steel ball minimizes friction between the ball and seating to ensure low torque and efficient function even in high cycle applications. - Connection Type: The V-3MH ball valve is available with different connection types, including female thread ends to ISO 228 and welded ends to ASME B16.25. Other connection types are available upon request. Technical Specifications / Features: - Three-piece ball valve for industrial use - Suitable for liquids, gases, and steam - Flexible integration, independent of flow direction - In-line maintenance possible - Hand lever with drop latch and padlock option - P-RTFE shaft packing, adjustable - Robust stainless-steel body with traceability marking - R-PTFE seat for chemical resilience and long service life - High-gloss-polished stainless-steel ball for low torque - Available with female thread ends (ISO 228) and welded ends (ASME B16.25)
