Temperature data-logger EBI 40 TC-02with PC interfaceUSBwith screen
Add to favorites
Compare this product
Characteristics
- Measured quantity
- temperature
- Connector type
- USB, with PC interface
- Display
- with screen, with LCD graphic display
- Applications
- for monitoring, for cold chain monitoring, for thermocouples, laboratory, for refrigerators, high-temperature, for cold storage
- Other characteristics
- battery-powered, multi-channel, with connector, with external sensor, with probe, K-type thermocouple input
- Memory capacity
20,000 unit
Description
Product information

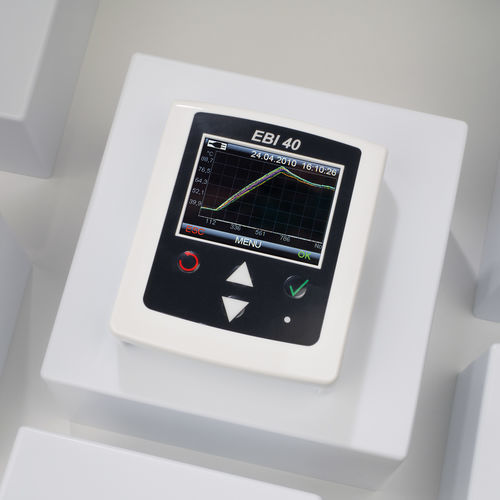

The EBI 40 TC-02 multi-channel temperature data logger records temperatures for process monitoring and validation. Current values and the measurement curve are shown on the multicolour TFT display. The thermo-isolation box enables use at elevated temperatures. The device supports connection of up to 12 thermocouple probes (type K or T) for simultaneous multi-point measurement.
Main features
Typical applications
Technical specifications
The EBI 40 TC-02 multi-channel temperature data logger records temperatures for process monitoring and validation. Current values and the measurement curve are shown on the multicolour TFT display. The thermo-isolation box enables use at elevated temperatures. The device supports connection of up to 12 thermocouple probes (type K or T) for simultaneous multi-point measurement.
Main features
- Up to 12 thermocouple inputs (K/T) with SMP connectors
- Multicolour TFT display for current values and measurement curve
- Thermo-isolation box for high-temperature applications
- USB interface for PC connection and data transfer
- Power via USB or standard AA batteries (5 V DC via USB)
- Automatic display deactivation and configurable sampling interval (0.1 s to 24 h)
- Calculation and recording of temperature profiles
- Data memory: 20,000 values per channel (max. 240,000 values)
Typical applications
- Incubators and laboratory equipment
- Refrigerators and cold storage monitoring
- Climate and environmental test chambers
- Storage rooms and warehouses
- Transport and shipment temperature studies
- Freeze-dryers and process validation studies
Technical specifications
- Model: EBI 40 TC-02 (SKU: 1340-6401)
- Measurement range: -200 °C to +1,200 °C
- Resolution: 0.1 °C
- Accuracy: ±0.5 °C (at +25 °C, without probe)
- Sensor: Thermocouple type K or T, SMP connector
- Storage capacity: 20,000 values per channel (max. 240,000 values)
- Dimensions: 140 x 118 x 35 mm (without probe)
- Weight: approx. 400 g
- Protection class: IP40
- Power supply: USB or standard AA batteries
- Storage temperature: 0 °C to +70 °C
